High-pressure Reciprocating Pump
High-pressure plunger/piston pump (pressure ranging from 2 to 100Mpa), variable working application and working medium

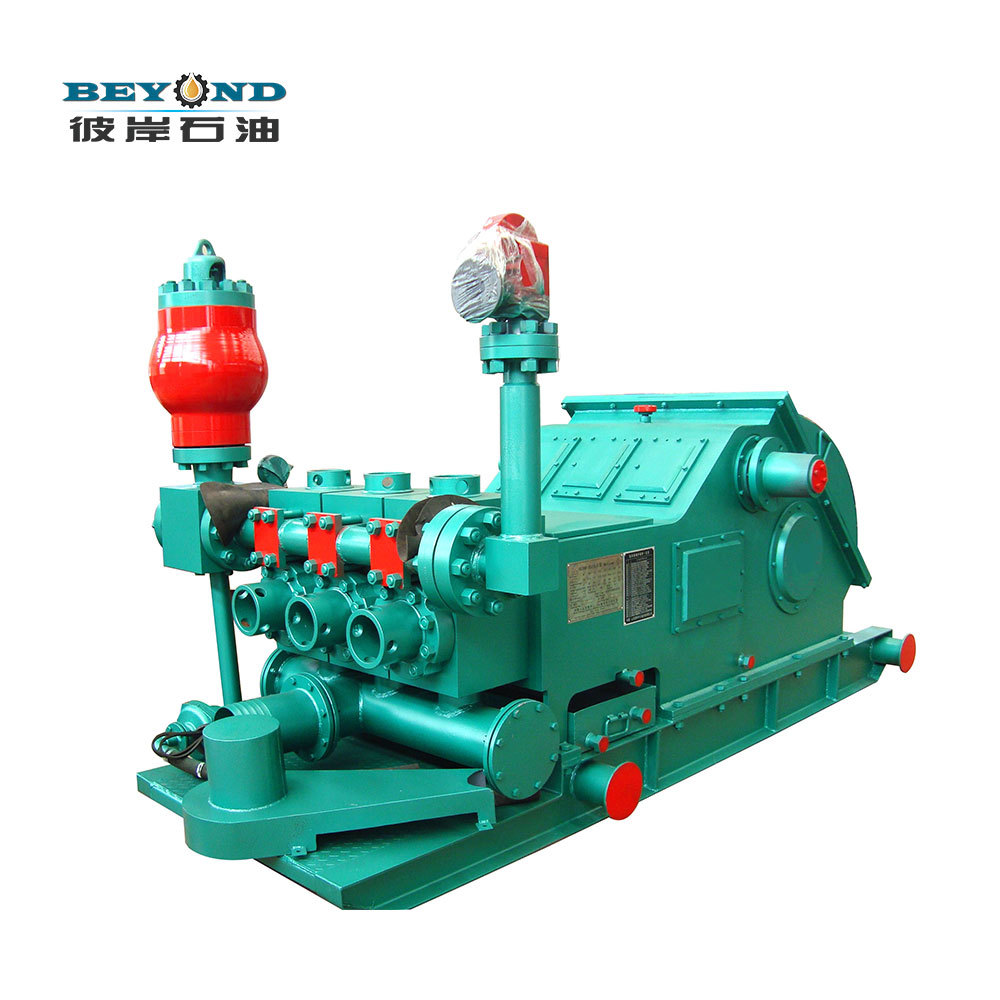

BW series mud pump is a horizontal reciprocating piston pump, which is mainly used to transport mud, suitable for the needs of geology, groundwater, geothermal and shallow oil drilling. It can also be used for mine sewage and long-distance water delivery. The pump consumes less energy, flexible to operate, high quality and durability, good decomposability, and easy to relocate.

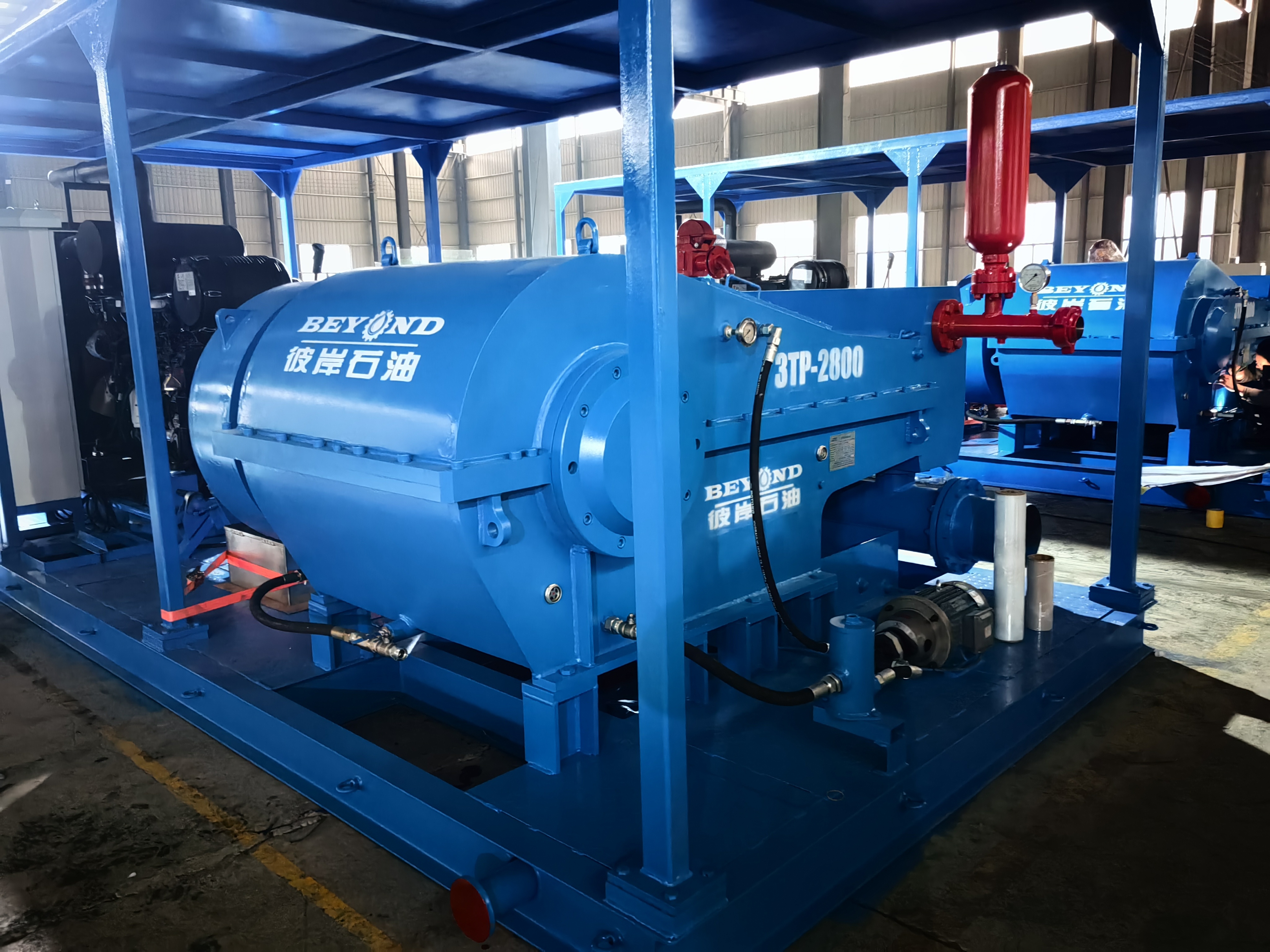

Our HDD Pumps are developed according to the design specifications and API standards of oil drilling mud pump, which is widely used in trenchless, CBM drilling, geothermal water injection and other applications. The pump can be equiped with different cylinder liner and piston, so as to adapt to various working conditions.
Our HDD Pumps are developed according to the design specifications and API standards of oil drilling mud pump, which is widely used in trenchless, CBM drilling, geothermal water injection and other applications. The pump can be equiped with different cylinder liner and piston, so as to adapt to various working conditions.
Our HDD Pumps are developed according to the design specifications and API standards of oil drilling mud pump, which is widely used in trenchless, CBM drilling, geothermal water injection and other applications. The pump can be equiped with different cylinder liner and piston, so as to adapt to various working conditions.
The CY2000 Grouting pump is a three-cylinder single-acting piston pump with a compact structure, large volume, high power, stable discharge pressure and good performance specially designed for horizontal directional drilling operation. The pump can also be used for backfilling of the pit and other engineering fields.
When the CY2000 grouting pump use φ180 liner, the rated displacement can reach 2000L/min, the pump pressure will be 5 MPa. When using φ130 liner, the rated pump pressure can reach 9.5 MPa, corresponding to a displacement of 1050L/min. The pump can be fitted with six different liners and pistons to output six different parameters to suit different operating conditions. Detailed parameters are shown in the table below. Such as crankshaft and hydraulic cylinder, are made of alloy steel with high strength, long service life and high reliability. The pump is equipped with a force lubrication pump for forced lubrication of the crosshead, the guide plate and each bearing; a spray pump is provided to cool and lubricate the liner and piston.
The protection level of the motor used in pump unit is IP55, and the soft start cabinet is equipped with rainproof facilities to meet the requirements of rainy days. The emission standard of the diesel engine used in pump unit adopts the non-road III stage to meet the urban construction requirements. In diesel drive pump unit, the using air pump, oil pump and spray pump are all driven by belt or gear to meet the requirements of no power supply.
Our company F series mud pump is designed and manufactured strictly accordance with API 7K standard on the basis of Emsco F series mud pump. All its spare parts can be compatible with any other make pump. Therefore, the pump is easy to maintain internationally.
§A -Three interchangeable forged steel one piece fluid end.
§B -Threaded valve pot covers and cylinder heads.
§C -Valve pot according to API # 6
§D -Discharge manifold C/W two 5 1/8'' -5000 PSI- API flanged outlets.
§E -Suction manifold C/W two flanged ends.
§F -Discharge pulsation dampener 5000 PSI W.P C/W all accessories.
§G -Lubrication system : oil circulating pump installation (electrical driven, China-made) , with fresh water heat exchanger (oil cooling) , Magnetic oil filter , Cartridge type gauge.
§H -Liner flushing system consisting of:
§One independent pump electrical driven by a 3HP electric motor. (China-made)
§I -Relief valve (JA-3 shear PIN type) 1500-5000 PSI W.P to ac ng tank.
§J -Pressure gauge 0-5000 PSI.
This series of mud pumps are designed and produced on the basis of American EMSCO F series pump in accordance with API-7K standard.
Triplex reciprocating pump, Non-API Standard, Spares Only Avaliable From China.
