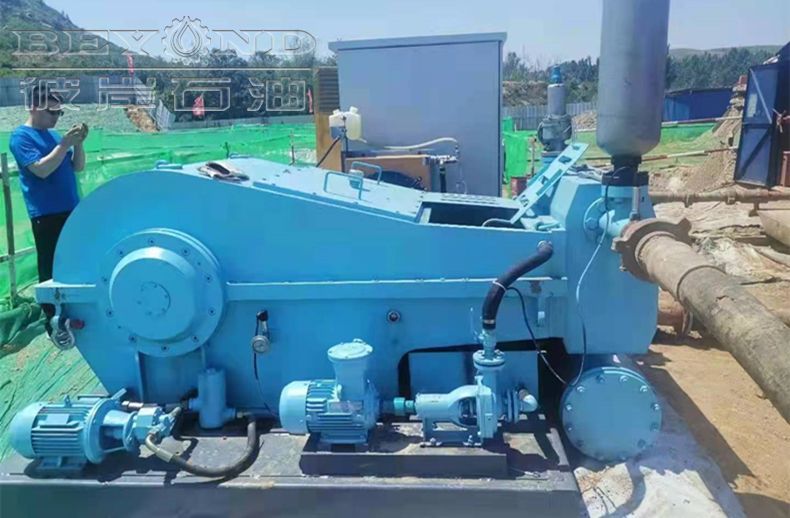

3TP-1800 Trenchless Pump
Our HDD Pumps are developed according to the design specifications and API standards of oil drilling mud pump, which is widely used in trenchless, CBM drilling, geothermal water injection and other applications. The pump can be equiped with different cylinder liner and piston, so as to adapt to various working conditions.
| Pump Model | 3TP-1800 | |
| Type | Triplex Piston Pump | |
| Lubrication Method | Forced Lubrication | |
| SPM | 140 | |
| Max Displacement | 1800 L/min（475GPM） | |
| Max. Pressure | 9 Mpa/1300PSI | |
| Stroke Length | 152.4mm/6inch | |
| Installed Liner Size | 190mm (7 1/2inch) | |
| Input Power | 140kw (187HP) | |
| Outlet Pipe Dia. | 89 (3 1/2inch) | |
| Inlet Pipe Dia. | 219 (8 1/2inch) | |
| Weight | 4800kg (10582lbs) | |
| Dimension mm (LxWxH) | 2674x2000x2042mm(802x600x612ft) | |
| Available Diesel Engine | Weichai WP7G300E300, 220kW/2300rpm, 1200N.m, 1600～1800rpm | |
| Available Transmission | “FAST” Manual Gear Box, 2600rpm, 1800N.m, 7-shift | |
| Performance Sheet | ||
| SPM | Displacement (L/min) | Pressure （Mpa） |
| 60SPM | 780 | 9 |
| 80SPM | 1040 | 7 |
| 100SPM | 1300 | 6 |
| 120SPM | 1550 | 5 |
| 140SPM | 1800 | 4 |
