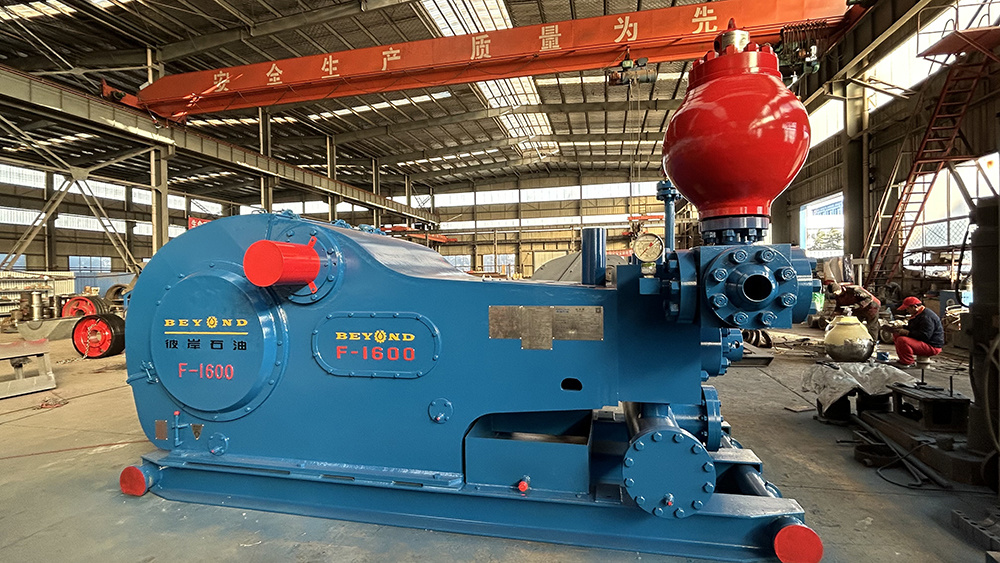

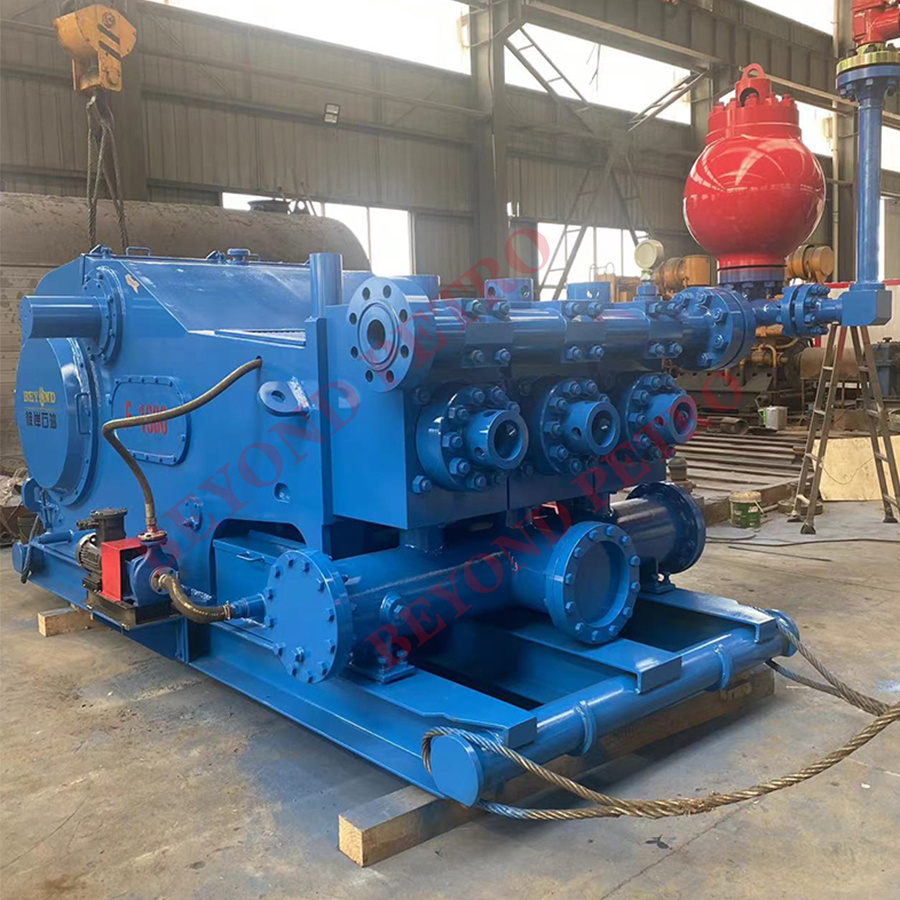

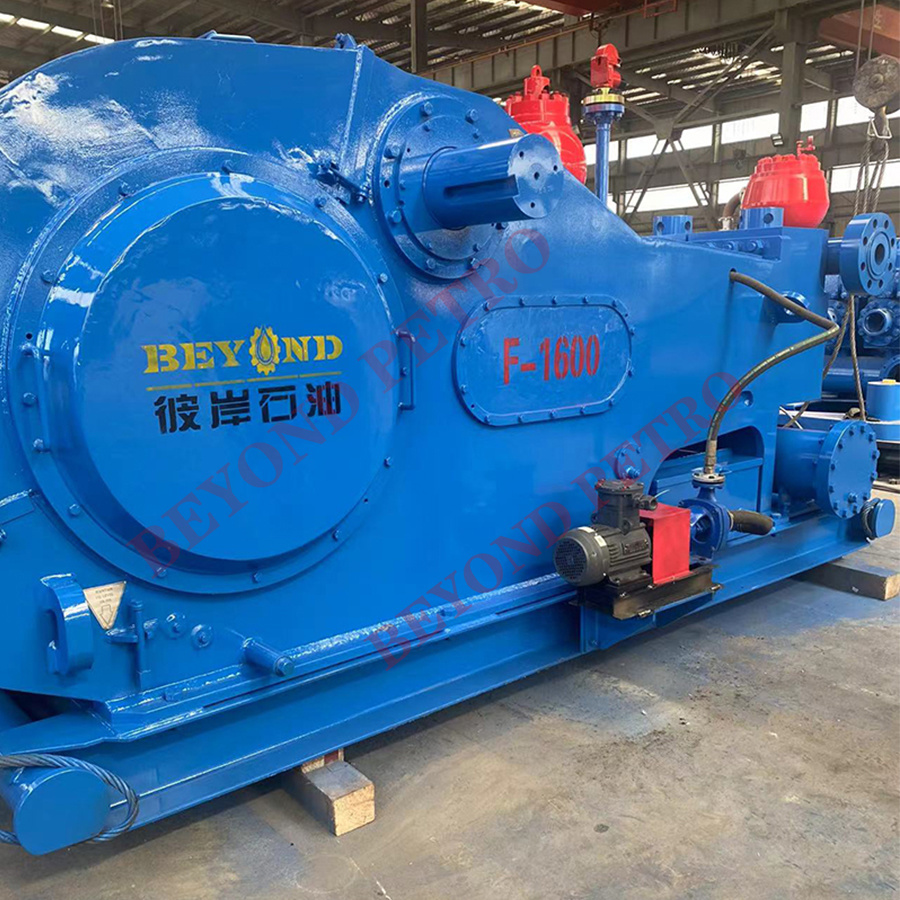

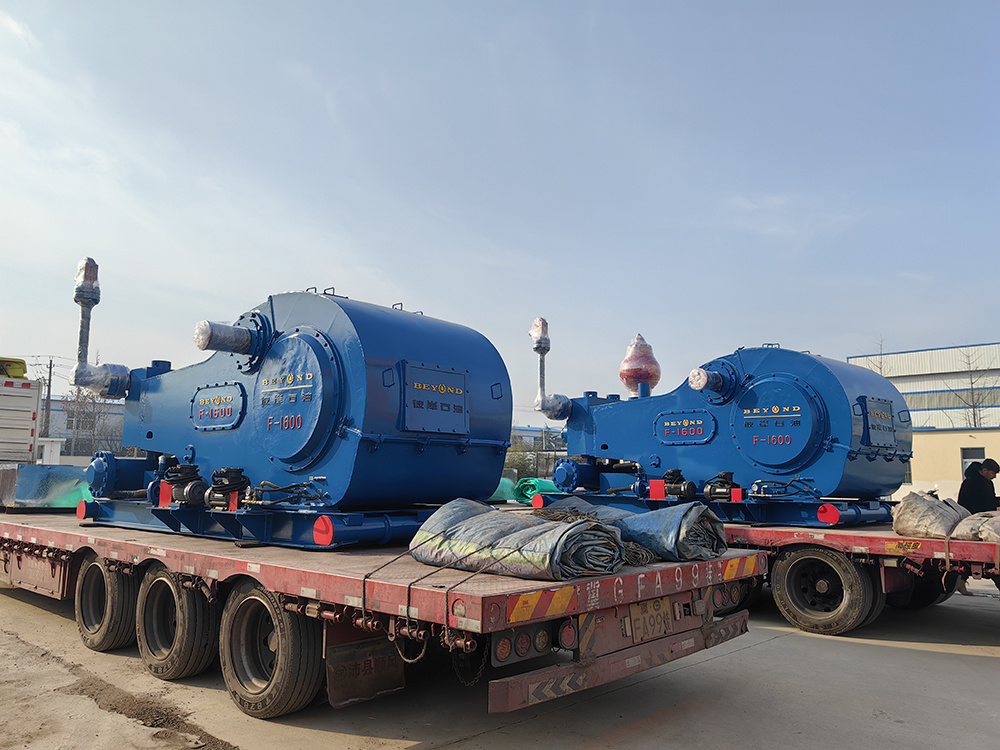

F-1600 Mud Pump
§equipped with pistons and liners of 6 ¾ inch;
§Pulse dampener, KB-75 type, fully equipped with connection flange, gauge, nitrogen charging device, etc.
§JA-3 shear relief valve with key
§Discharge manifold, suction manifold and connections, etc.
§Greasing system, splashing & forced greasing; with the gear oil pump for greasing the gears, bearings, crosshead, guiding plates, and extension rod etc.
§Pinion belt driven liner wash pump ASSY C/W all required accessories (wash pump, belt guard, hoses, recirculation tank ….) for cooling the liners’ pistons (there is electric spraying pump as alternative)
§Jib crane with hand hoist and trolley, to handle different weights
§Equipped with pump pressure gauges
§Technical documentation, including:
§- maintenance and operating manual; hydrostatic test report; report with pump parameters (flow, pressure, spm), obtained within the unit; materials test report; certificate of quality;
Main technical parameters:
-
- F-1600 Technical Specifications
Type |
Horizontal Triplex Single Acting Piston Pump |
Gear Type |
Herringbone Gear |
|
||||||||
Rated Input Power (KW/HP) |
1193/1600 |
Gear Ratio |
4.206:1 |
|
||||||||
Rated Stroke (SPM) |
120 |
Lubrication |
Forced & Splashing |
|
||||||||
Stroke Length (mm/in) |
305/12〃 |
Valve Cavity |
API-7# |
|
||||||||
Inlet Connection |
12〃(305mm) |
Outlet Connection |
5 1/8〃Flange 5000PSI |
|
||||||||
Weight(Kg/Pound) |
24791/54660 |
Overall Dimension (L×W×H) |
4615×3276×2688mm 181.8〃×128〃×102.4〃 |
|
||||||||
SPM |
Rated Power |
Liner Dia. (in) and Pressure Rating (Mpa / psi) |
||||||||||
7 |
6-3/4 |
6-1/4 |
6 |
5-1/2 |
5 |
|||||||
24.19 3508 |
25.46 3692 |
29.66 4300 |
32.16 4663 |
34.5 5000 |
35 5075 |
|||||||
HP |
KW |
|||||||||||
Displacement (L/S)/(gpm) |
||||||||||||
120 |
1600 |
1193 |
45.41 720 |
42.23 669 |
36.20 574 |
33.36 529 |
28.04 444 |
23.17 367 |
||||
110 |
1467 |
1094 |
41.63 660 |
38.71 614 |
33.19 526 |
30.58 485 |
25.70 407 |
21.24 337 |
||||
100 |
1333 |
994 |
37.84 600 |
35.19 558 |
30.17 478 |
27.80 441 |
23.36 370 |
19.31 306 |
||||
90 |
1200 |
895 |
34.06 540 |
31.67 502 |
27.15 430 |
25.02 397 |
21.03 333 |
17.38 275 |
||||
Based on 100% volumetric efficiency and 90% mechanical efficiency |
-
-
-
- Specification of F-1600
-
-
Stroke per minute |
Liner size (mm) and Pressure Rating(Mpa) /(psi) |
|||||
φ180 |
φ170 |
φ160 |
φ150 |
φ140 |
φ130 |
|
23.6 3345 |
25.9 3750 |
29.2 4235 |
33.2 4820 |
34.5 5000 |
34.5 5000 |
|
Displacement (L/S) /(gpm) |
||||||
120 |
46.54 737 |
41.51 658 |
36.77 583 |
32.32 512 |
28.15 446 |
24.27 385 |
110 |
42.66 676 |
38.05 603 |
33.71 534 |
29.62 469 |
25.81 409 |
22.25 352 |
100 |
38.78 614 |
34.59 548 |
30.64 485 |
26.93 427 |
23.46 372 |
20.23 320 |
90 |
34.9 553 |
31.13 493 |
27.58 437 |
24.24 384 |
21.11 334 |
18.21 288 |
Based on 100% volumetric efficiency and 90% mechanical efficiency |
