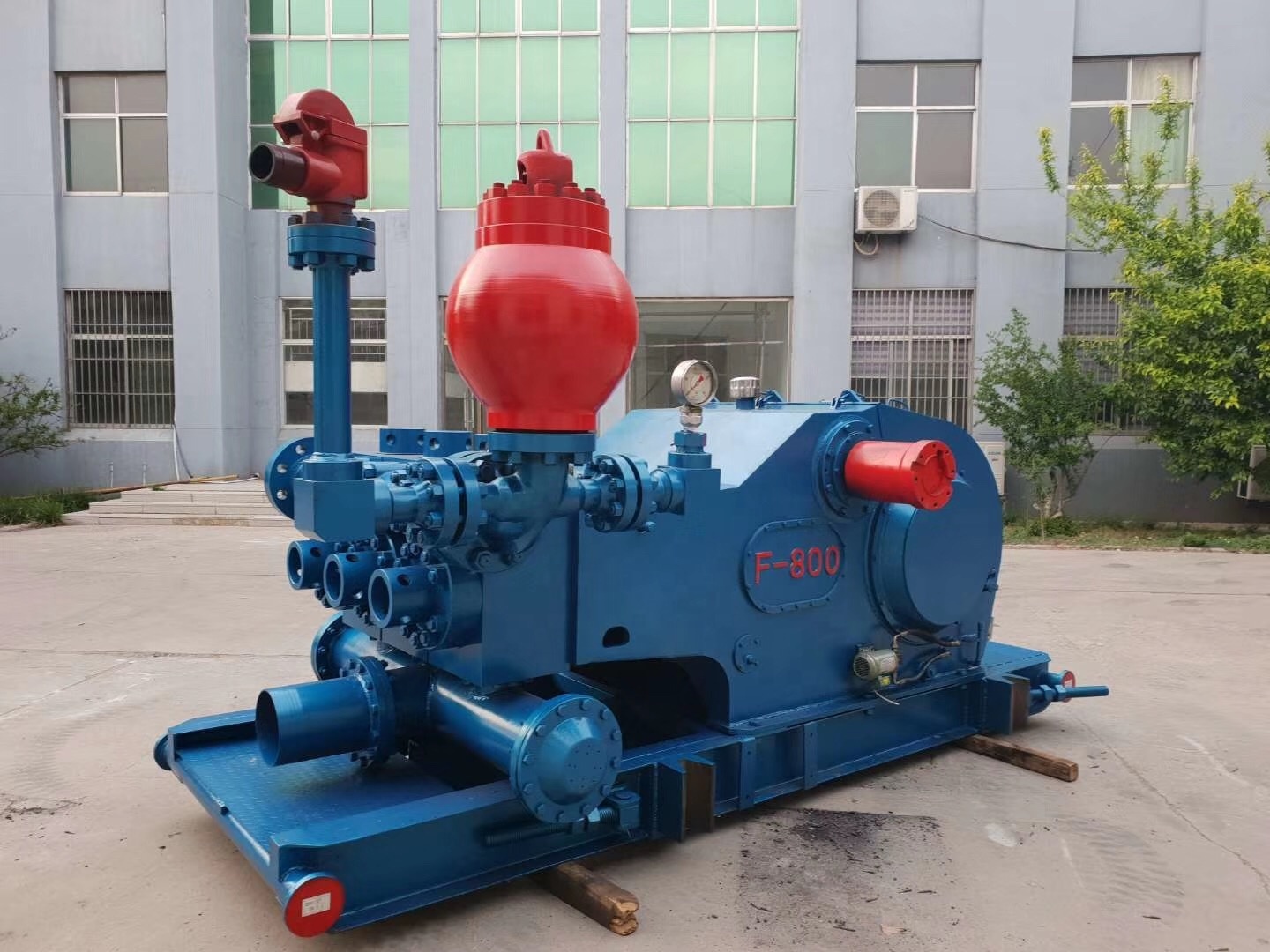

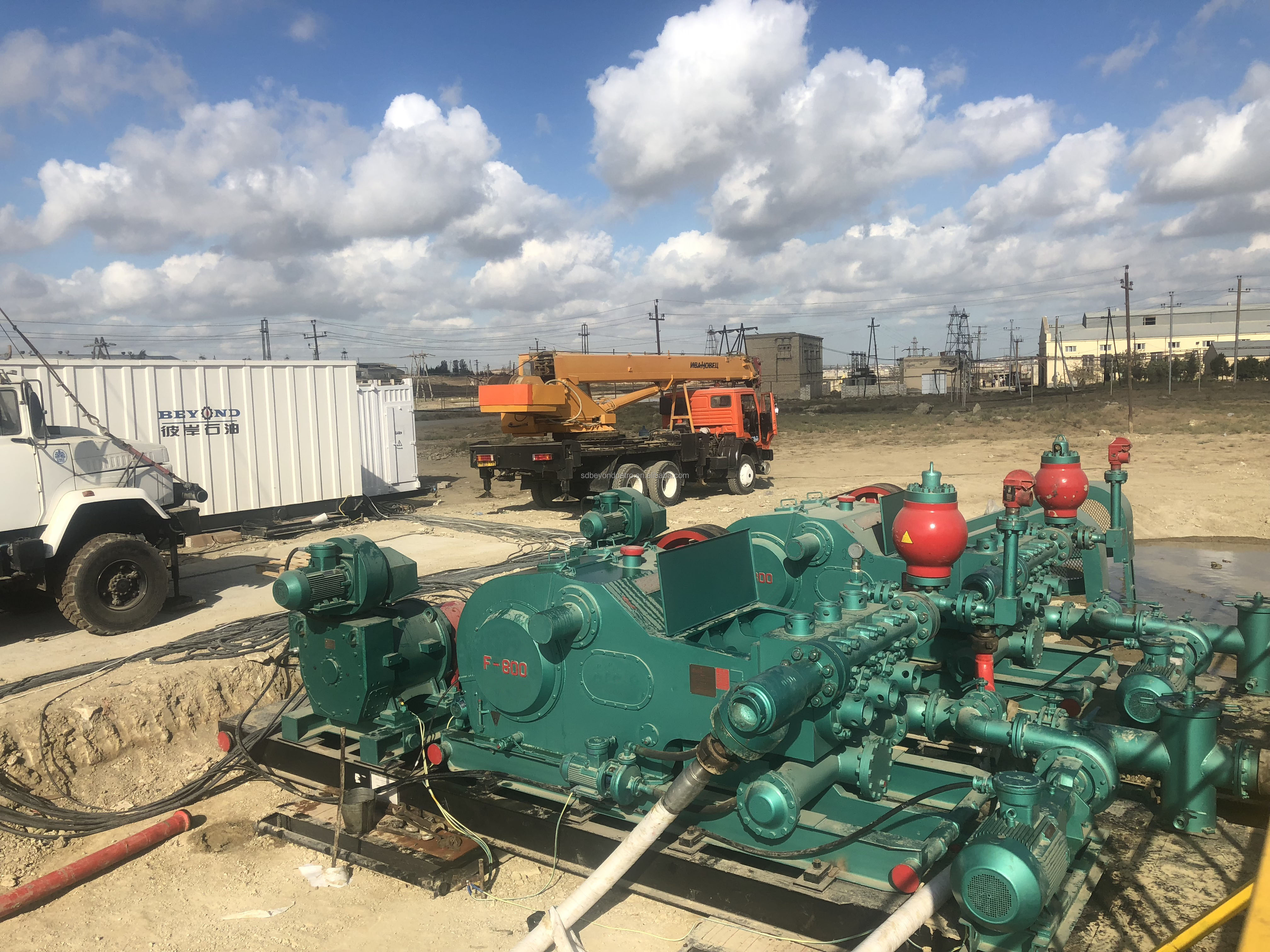

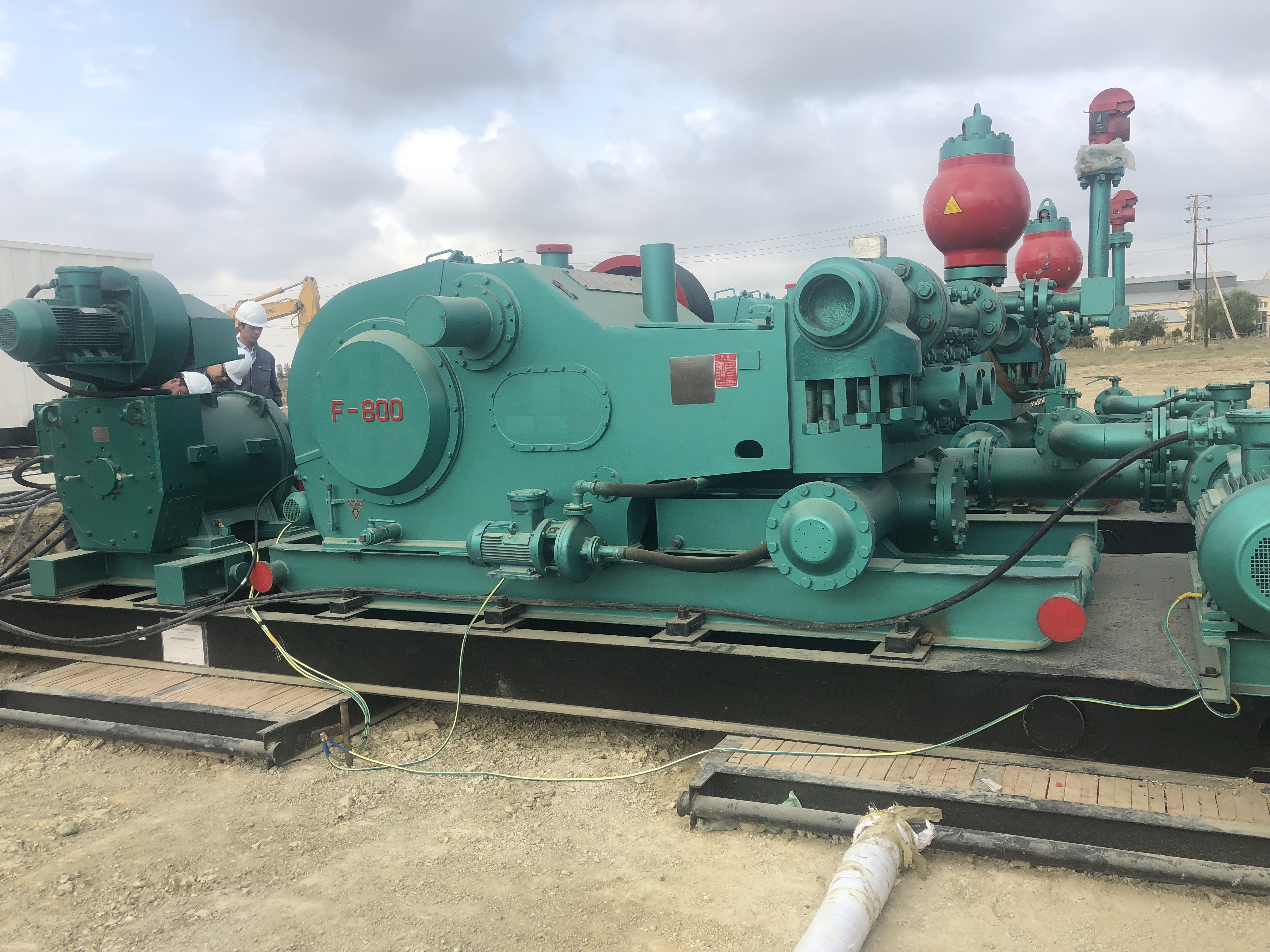

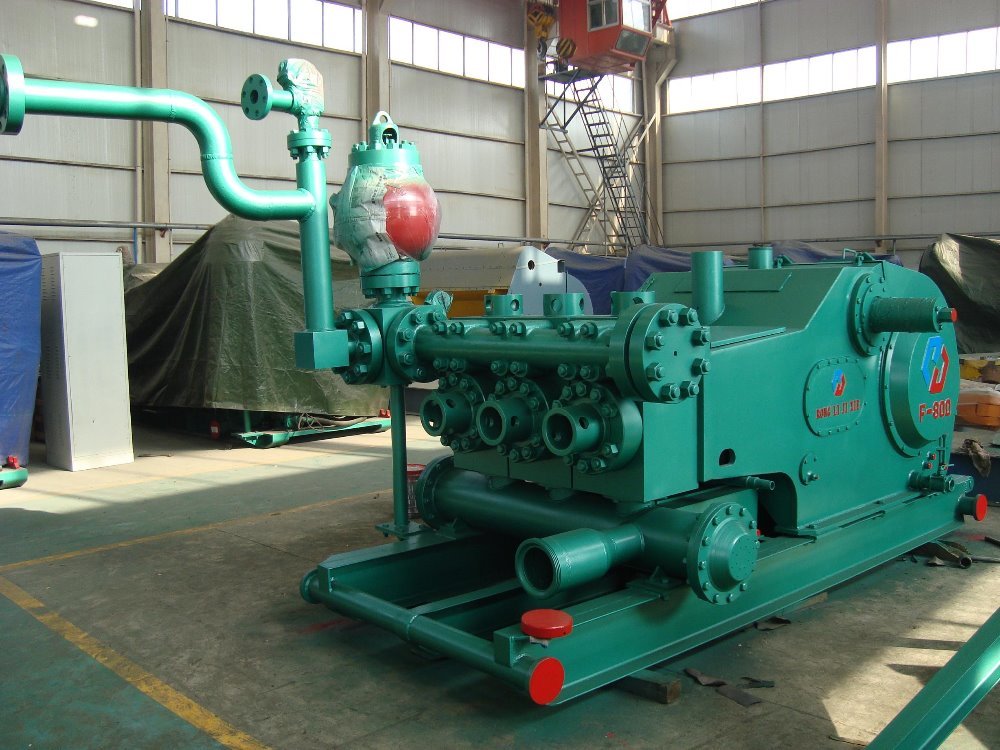

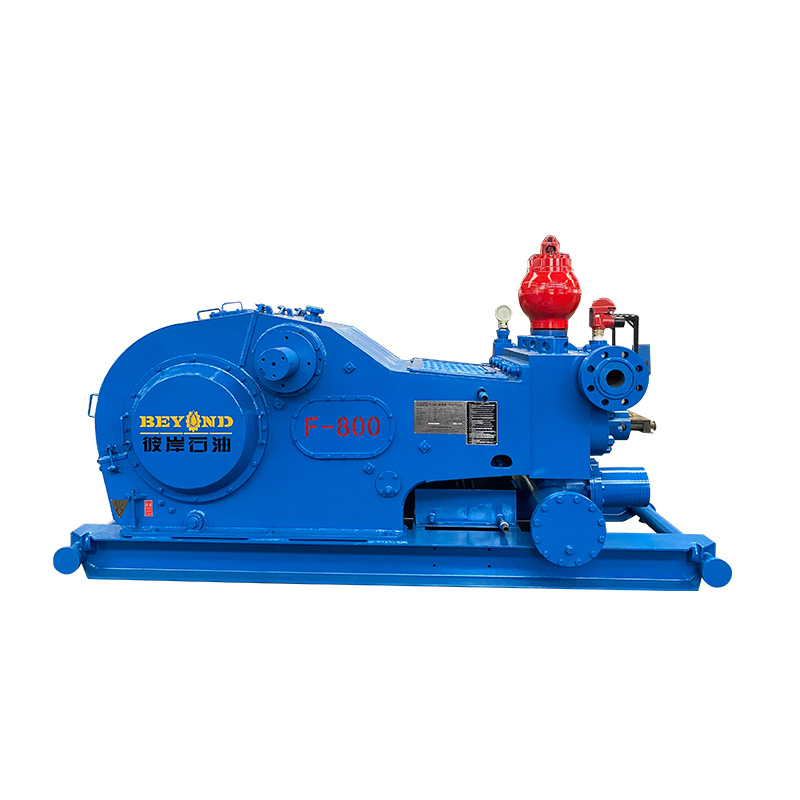

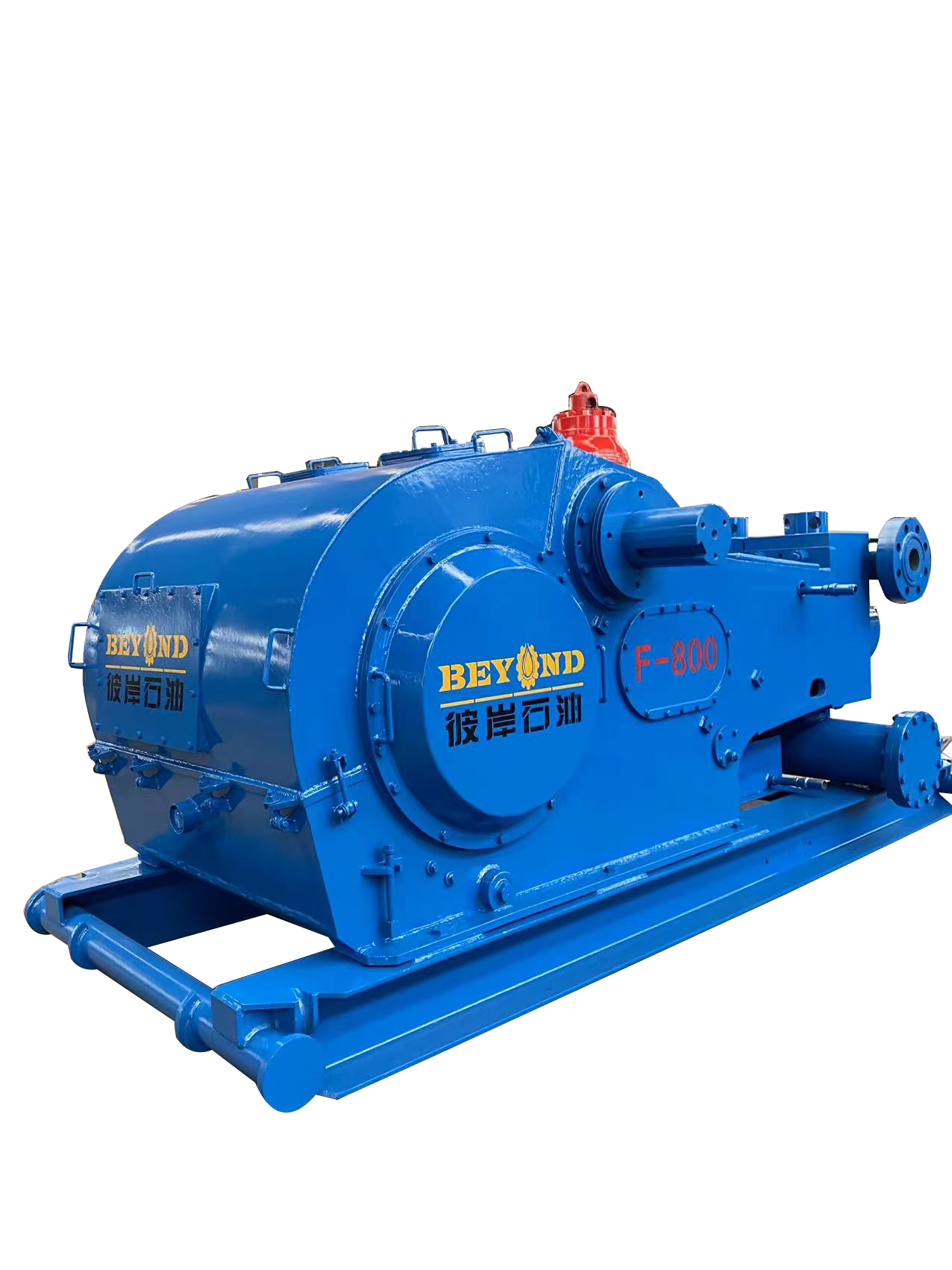

F-800 Mud Pump
F-800 Mud Pump
F-800 Mud Pump
F-800 Mud Pump
F-800 Mud Pump
F-800 Mud Pump

F-800 Mud Pump

Our company F series mud pump is designed and manufactured strictly accordance with API 7K standard on the basis of Emsco F series mud pump. All its spare parts can be compatible with any other make pump. Therefore, the pump is easy to maintain internationally. §A -Three interchangeable forged steel one piece fluid end. §B -Threaded valve pot covers and cylinder heads. §C -Valve pot according to API # 6 §D -Discharge manifold C/W two 5 1/8'' -5000 PSI- API flanged outlets. §E -Suction manifold C/W two flanged ends. §F -Discharge pulsation dampener 5000 PSI W.P C/W all accessories. §G -Lubrication system : oil circulating pump installation (electrical driven, China-made) , with fresh water heat exchanger (oil cooling) , Magnetic oil filter , Cartridge type gauge. §H -Liner flushing system consisting of: §One independent pump electrical driven by a 3HP electric motor. (China-made) §I -Relief valve (JA-3 shear PIN type) 1500-5000 PSI W.P to ac ng tank. §J -Pressure gauge 0-5000 PSI.

Kerwords：

F-800 Mud Pump

Category：

Emsco F Series Drilling Mud Pump

Reciprocating Pump Solutions

Email：

support@sdbeyondpetro.com

Phone：

+86-13475681371

Related Products
Online Consult

F-800 Mud Pump

Our company F series mud pump is designed and manufactured strictly accordance with API 7K standard on the basis of Emsco F series mud pump. All its spare parts can be compatible with any other make pump. Therefore, the pump is easy to maintain internationally.



§A -Three interchangeable forged steel one piece fluid end.

§B -Threaded valve pot covers and cylinder heads.

§C -Valve pot according to API # 6

§D -Discharge manifold C/W two 5 1/8'' -5000 PSI- API flanged outlets.

§E -Suction manifold C/W two flanged ends.

§F -Discharge pulsation dampener 5000 PSI W.P C/W all accessories.

§G -Lubrication system : oil circulating pump installation (electrical driven, China-made) , with fresh water heat exchanger (oil cooling) , Magnetic oil filter , Cartridge type gauge.

§H -Liner flushing system consisting of:

§One independent pump electrical driven by a 3HP electric motor. (China-made)

§I -Relief valve (JA-3 shear PIN type) 1500-5000 PSI W.P to ac ng tank.

§J -Pressure gauge 0-5000 PSI.



        1.        F-800 Technical Specifications

Type

Horizontal Triplex Single Acting Piston Pump

Gear Type

Herringbone Gear

Rated Input Power

(KW/HP)

597/800

Gear Ratio

4.185：1

Rated Stroke (SPM)

150

Lubrication

Forced & Splashing

Stroke Length （mm/in）

228.6/9〃

Valve Cavity

API-6#

Inlet Connection

10〃（254mm）

Outlet Connection

5 1/8〃Flange 5000PSI

Weight（Kg/Pound）

14500/31970

Overall Dimension

（L×W×H）

3963×3025×2410mm

156〃×119〃×95〃

SPM

Rated Power

Liner Dia.(in) and Pressure Rating (Mpa)/(psi)

6-3/4

6-1/2

6-1/4

6

5-1/2

5

4-1/2

4

13.56

1965

14.63

2120

15.82

2295

17.16

2490

20.43

2965

24.72

3585

30.51

4425

35

5075

HP

KW

Displacement (L/S)/(gpm)

150

800

597

39.58

627

36.70

582

33.94

538

31.27

496

26.28

417

21.72

344

17.59

279

13.90

220

140

747

557

36.94

586

34.26

543

31.67

502

29.19

463

24.53

389

20.27

321

16.42

260

12.97

206

130

693

517

34.30

544

31.81

504

29.41

466

27.10

430

22.78

361

18.82

298

15.25

242

12.05

191

120

640

477

31.67

502

29.36

465

27.15

430

25.02

397

21.02

333

17.37

275

14.07

223

11.12

176

110

587

438

29.03

460

26.92

427

24.89

395

22.93

363

19.27

305

15.93

252

12.90

204

10.19

162

Based on 100% volumetric efficiency and 90% mechanical efficiency
        1. Specification of F-800



Stroke

per

minute

Liner size (mm) and Pressure Rating(Mpa/psi)

φ170

φ160

φ150

φ140

φ130

φ120

φ110

φ100

13.8

2000

15.6

2260

17.7

2570

20.3

2950

23.6

3420

27.7

4015

33.0

4780

34.5

5000

Displacement (L/S) /(gpm)

150

38.92

617

34.47

546

30.30

480

26.39

418

22.76

360

19.39

307

16.29

258

13.47

213

140

36.32

575

32.17

510

28.28

448

24.63

390

21.24

336

18.10

287

15.21

241

12.57

199

130

33.73

534

29.88

473

26.26

416

22.87

362

19.72

312

16.81

266

14.12

224

11.67

185

120

31.13

493

27.58

437

24.24

384

21.11

334

18.21

288

15.51

246

13.03

206

10.77

171

110

28.54

452

25.28

400

22.22

352

19.35

307

16.69

264

14.22

225

11.95

189

9.87

156

Based on 100% volumetric efficiency and 90% mechanical efficiency



Stroke

per

minute

Liner size (in) and Pressure Rating(Mpa)/(psi)

6-3/4

6-1/2

6-1/4

6

5-1/2

5

4-1/2

4

13.56

1965

14.63

2120

15.82

2295

17.16

2490

20.43

2965

24.72

3585

30.51

4425

35

5075

Displacement (L/S) /(gpm)

150

39.58

627

36.70

582

33.94

538

31.27

496

26.28

417

21.72

344

17.59

279

13.90

220

140

36.94

586

34.26

543

31.67

502

29.19

463

24.53

389

20.27

321

16.42

260

12.97

206

130

34.30

544

31.81

504

29.41

466

27.10

430

22.78

361

18.82

298

15.25

242

12.05

191

120

31.67

502

29.36

465

27.15

430

25.02

397

21.02

333

17.37

275

14.07

223

11.12

176

110

29.03

460

26.92

427

24.89

395

22.93

363

19.27

305

15.93

252

12.90

204

10.19

162

Based on 100% volumetric efficiency and 90% mechanical efficiency
