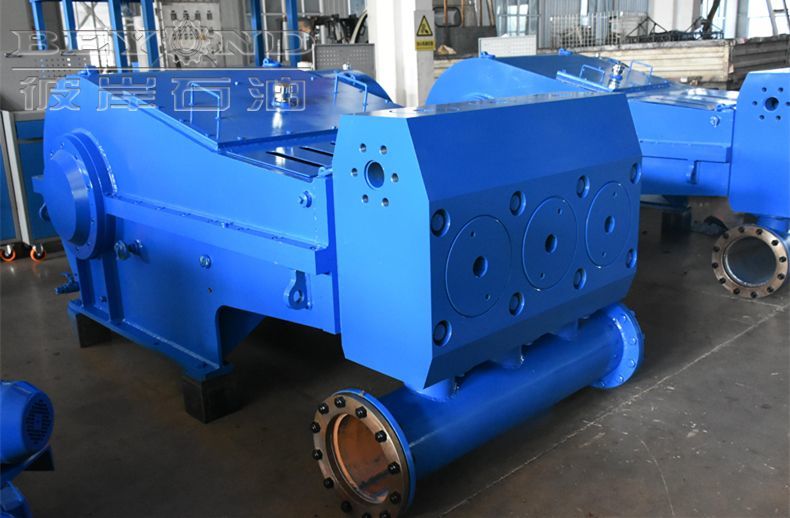

3TP-2800 Trenchless Pump
Our HDD Pumps are developed according to the design specifications and API standards of oil drilling mud pump, which is widely used in trenchless, CBM drilling, geothermal water injection and other applications. The pump can be equiped with different cylinder liner and piston, so as to adapt to various working conditions.
Kerwords：
3TP-2800 Trenchless Pump
HDD Pumps
Email：
Phone：
3TP-2800 Trenchless Pump
| Pump Model | 3TP-2800 | |
| Type | Triplex Piston Pump | |
| Lubrication Method | Forced Lubrication | |
| Pump Speed（SPM） | 140 | |
| Max Displacement | 2800 L/min (740GPM） | |
| Max. Pressure | 9 Mpa/1300PSI | |
| Stroke Length | 177.8mm/7inch | |
| Installed Liner Size | 220 (8 1/2inch) | |
| Input Power | 300kw (400HP) | |
| Outlet Pipe Dia. | 89 (3 1/2inch) | |
| Inlet Pipe Dia. | 273 (10 5/8inch) | |
| Weight | 7800kg (17196lbs) | |

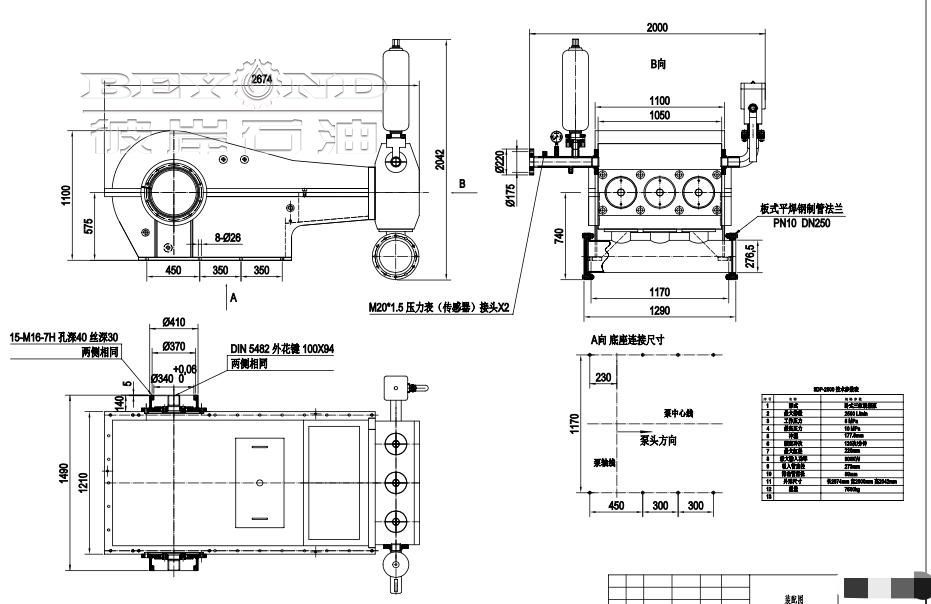

| Dimension (LxWxH) | 2300x1729x1700mm (690x519x510ft) | |
| Available Diesel Engine | Weichai, WP12G480E310，353kW/2100rpm，2100N.m，1200～1500rpm | |
| Available Transmission | “FAST” Manual Gear Box, 2600rpm, 2600N.m, 9-shift | |
| Pump Performance Sheet | ||
| Pump Speed (SPM) | Displacement (L/min) | Pressure (Mpa) |
| 60SPM | 1220 | 9 |
| 80SPM | 1620 | 7.5 |
| 100SPM | 2030 | 6 |
| 120SPM | 2430 | 5 |
| 140SPM | 2840 | 4.5 |
