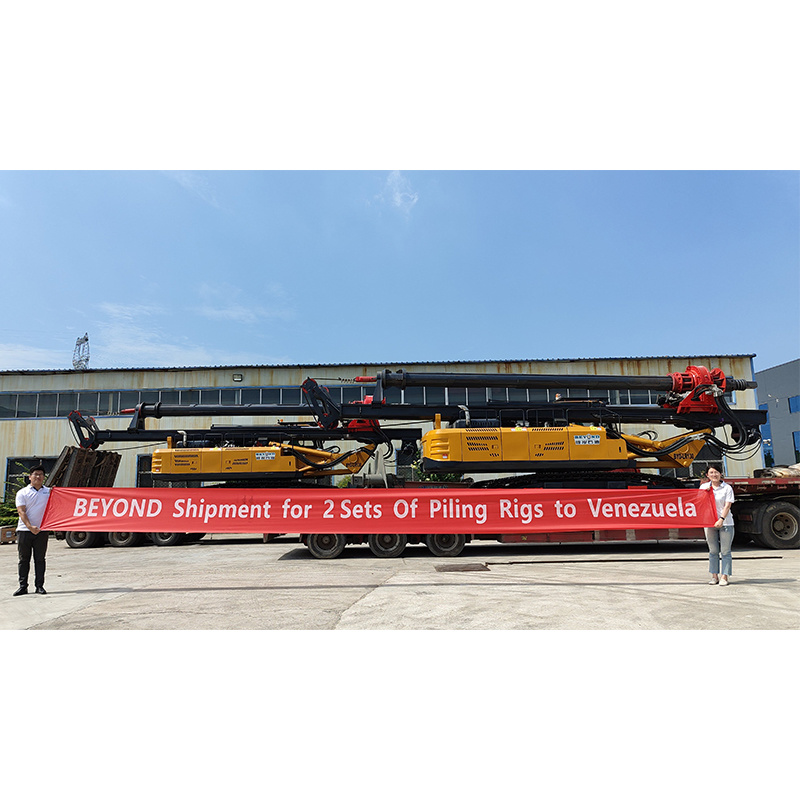

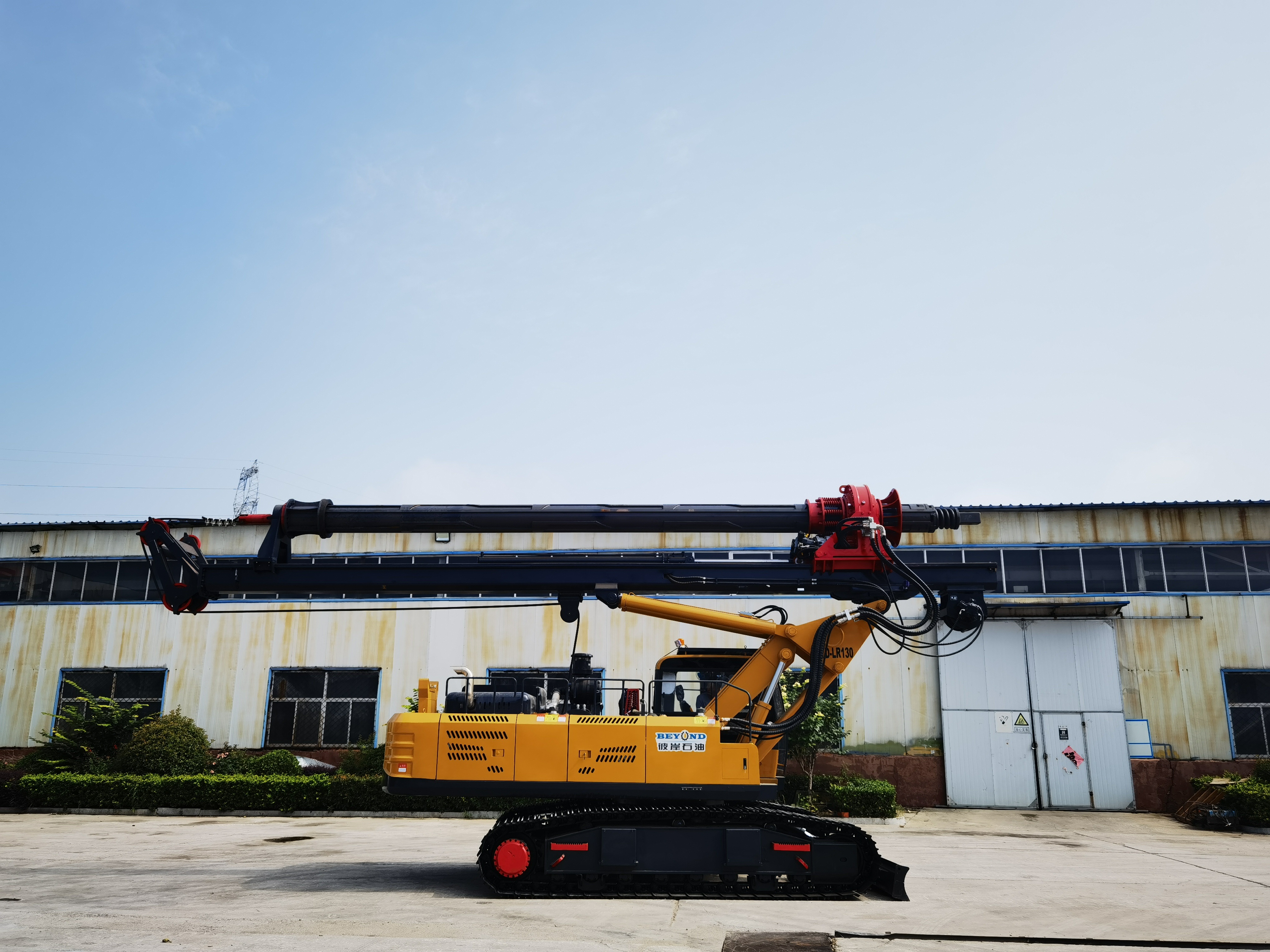

LR100 25M Pile Drilling Machine

LR100 Pile Rig Introduction:

1. It is economical and efficient, mainly used in media and small-diameter pile civil construction;
2. Diesel engine has load induction and output power auto-control; the fuel consumption drops 5-10%;
3. 5-level anti-vibration technology absorbs drilling vibrational frequency all-directionally to guarantee high stability;
4. The special lubricating system makes sure that it can work under high-temperature environment;
5. The removable and symmetrical structure design doubles the service life of rotary drive key;
6. Crowd cylinder has two operation modes-normal lifting and fast lifting to improve push efficiency;
7. Optional chassis incline alarm enhances construction safety;
8. Mast verticality auto-adjusting technology promises the pile accuracy.

LR100 Pile Rig Specification:

1	Rotary Drive (dual-motor, Brand: Rexroth)
1.1	Torque Output	100KN.M
1.2	Rotary Speed	6-35 r/min
2	Crowd System
2.1	Maximum Crowd Push	80 KN
2.2	Maximum Crowd Pull	120 KN
2.3	Cylinder Stroke	2500 mm
2.4	Maximum Working Pressure	30 Mpa
2.5	Pilot Pressure	4 Mpa
3	Main Winch (Brand: Rexroth)
3.1	Line Pull	120 KN
3.2	Line Speed	45 m/min
3.3	Rope Diameter	24 mm
4	Auxiliary Winch (Brand: Longgong)
4.1	Line Pull	20 KN
4.2	Line Speed	60m/min
4.3	Rope Diameter	14 mm
5	Engine
5.1	Engine Make	Cummins
5.2	Model	QSB5.9-C210-30
5.3	Power	154kw@2200rpm
5.4	Emission Standard	EU Stage 3A
5.5	Maximum Torque	820 N.m
6	Undercarriage
6.1	Crawler Width (Telescopic)	2600 mm (open 3400mm)
6.2	Track Shoes Width	600 mm
6.3	Maximum Travel Speed	5 km/h
7	General
7.1	Main Pump Brand	KAWASAKI
7.2	Drilling Diameter	1200 mm
7.3	Drilling Depth	21 m
7.4	Tail Swing Radius	3600 mm
7.5	Operating Height	12800 mm
7.6	Operating Weight	23000kgs
7.7	Mast Inclination (Backward/Forward/Lateral)	90°/4°/4°
7.8	Hydraulic Tank Capacity	240L
7.9	Diesel Tank Capacity	240L
7.10	Transportation Height	3500 mm
7.11	Transportation Width	2600 mm
7.12	Transportation Length	10800 mm
