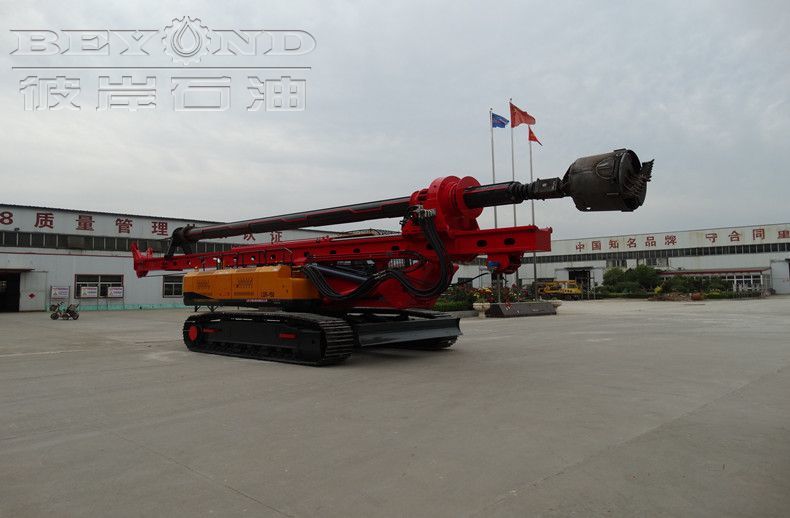

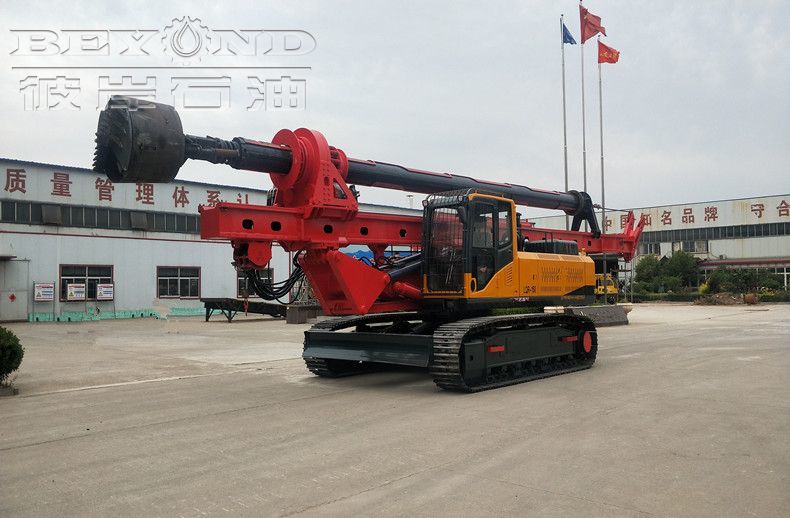

LR150 40M Pile Drilling Machine
BEYOND LR150 Pile Drilling Rig Introduction:
Beyond Rotary Drilling Rig widely used in boring operation of bored concrete pile in foundation engineering of highway, railways, bridges, ports, docks and high-rise buildings.
LR150 40M Pile Drilling Rig Technical Characteristics:
* Option device according to customer's requirement excellent expansibility.
* To install camera for observing main winch, operator can observe the state of steel rope at day and night in cabin.
* Adopting the supercharged CUMMINS engine with European III effluent standard to meet environmental rotection and energy conservation.
* Hydraulic pressure system adopted threshold power control and positive flow control, the system acquired high efficiency and higher energy conservation.
* Standard centralized lubricating system, Easy to maintenance.
LR150 Technical specification:
|
1 |
Rotary Drive (dual-motor, Brand: Rexroth) |
|
|
1.1 |
Torque Output |
150KN.M |
|
1.2 |
Rotary Speed |
5-30 r/min |
|
2 |
Crowd System |
|
|
2.1 |
Maximum Crowd Push |
120 KN |
|
2.2 |
Maximum Crowd Pull |
130 KN |
|
2.3 |
Cylinder Stroke |
3500 mm |
|
2.4 |
Maximum Working Pressure |
32 Mpa |
|
2.5 |
Pilot Pressure |
4 Mpa |
|
3 |
Main Winch (Brand: Rexroth) |
|
|
3.1 |
Line Pull |
160 KN |
|
3.2 |
Line Speed |
62m/min |
|
3.3 |
Rope Diameter |
26 mm |
|
4 |
Auxiliary Winch (Brand: Longgong) |
|
|
4.1 |
Line Pull |
80 KN |
|
4.2 |
Line Speed |
80m/min |
|
4.3 |
Rope Diameter |
16 mm |
|
5 |
Engine |
|
|
5.1 |
Engine Make |
Cummins |
|
5.2 |
Model |
QSB7-C169 |
|
5.3 |
Power |
169kw/2050r/min |
|
5.4 |
Emission Standard |
EU Stage 3A |
|
5.5 |
Maximum Torque |
820 N.m/1400rpm |
|
6 |
Undercarriage |
|
|
6.1 |
Crawler Width (Telescopic) |
3000 mm (open 3800mm) |
|
6.2 |
Track Shoes Width |
600 mm |
|
6.3 |
Maximum Travel Speed |
5 km/h |
|
7 |
General |
|
|
7.1 |
Main Pump Brand |
KAWASAKI |
|
7.2 |
Drilling Diameter |
1500 mm |
|
7.3 |
Drilling Depth |
40 m |
|
7.4 |
Tail Swing Radius |
4200 mm |
|
7.5 |
Operating Height |
16500 mm |
|
7.6 |
Operating Weight |
41000kgs |
|
7.7 |
Mast Inclination (Backward/Forward/Lateral) |
90°/4°/4° |
|
7.8 |
Hydraulic Tank Capacity |
240L |
|
7.9 |
Diesel Tank Capacity |
240L |
|
8 |
Dimension (L*W*H) (mm) |
14000*3000*3800 |
