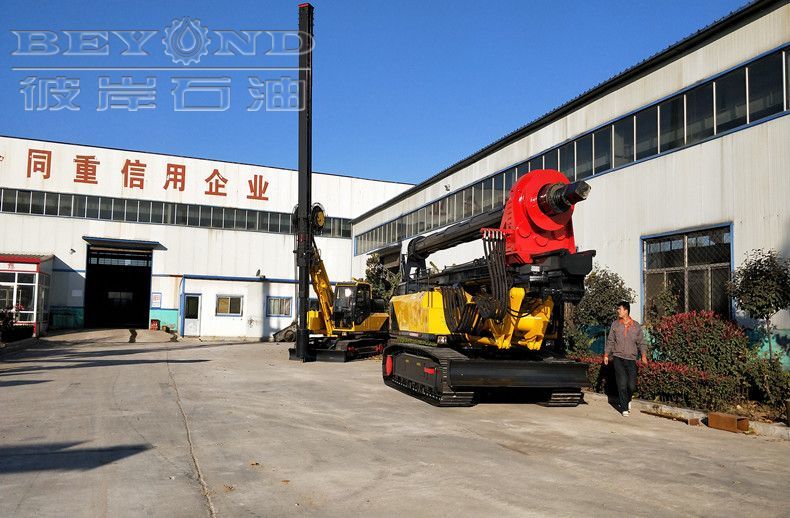

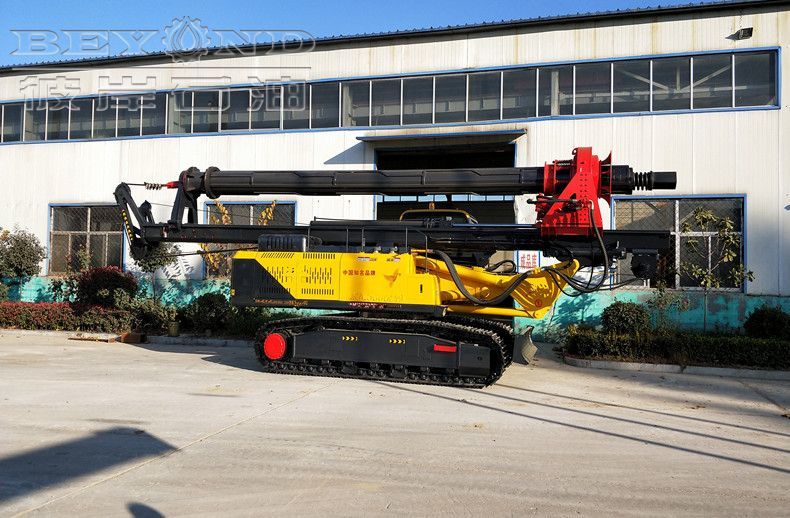

LR80 20M Pile Rig Machinery

LR80 Rig Pile Machinery:

LR80 crawler type rotary drilling rig adopt pressurized drilling mode, enabling rotary drilling depth is 21m. It is matching the different specifications of drilling tools, pile hole diameter range up to 500-1500mm.
It has high drilling efficiency, and after construction, it can quickly move to next working site . flexible, convenient and efficient, is a national high-speed rail construction-specific piling machinery equipment.
This machine is applicable to soil, clay, fill soil, silt, silt layer, and some strata contain pebbles, gravel; widely used in high-speed rail trestle piles, slop shield piles, photovoltaic power station foundation pile, power grids, civil construction, new rural construction, municipal construction, landscaping and other projects.

LR80 20M Technical Specification:

1	Rotary Drive (dual-motor, Brand: Rexroth)
1.1	Torque Output	80KN.M
1.2	Rotary Speed	6-35 r/min
2	Crowd System
2.1	Maximum Crowd Push	80 KN
2.2	Maximum Crowd Pull	120 KN
2.3	Cylinder Stroke	2500 mm
2.4	Maximum Working Pressure	30 Mpa
2.5	Pilot Pressure	4 Mpa
3	Main Winch (Brand: Rexroth)
3.1	Line Pull	120 KN
3.2	Line Speed	45 m/min
3.3	Rope Diameter	24 mm
4	Auxiliary Winch (Brand: Longgong)
4.1	Line Pull	20 KN
4.2	Line Speed	60m/min
4.3	Rope Diameter	14 mm
5	Engine
5.1	Engine Make	Cummins
5.2	Model	QSB5.9-C210-30
5.3	Power	154kw@2200rpm
5.4	Emission Standard	EU Stage 3A
5.5	Maximum Torque	624 N.m
6	Undercarriage
6.1	Crawler Width (Telescopic)	2600 mm (open 3400mm)
6.2	Track Shoes Width	600 mm
6.3	Maximum Travel Speed	5 km/h
7	General
7.1	Main Pump Brand	KAWASAKI
7.2	Drilling Diameter	1000 mm
7.3	Drilling Depth	21 m
7.4	Tail Swing Radius	7200 mm
7.5	Operating Height	10800 mm
7.6	Operating Weight	19000kgs
7.7	Mast Inclination (Backward/Forward/Lateral)	90°/4°/4°
7.8	Hydraulic Tank Capacity	200L
7.9	Diesel Tank Capacity	200L
7.10	Transportation Height	3300 mm
7.11	Transportation Width	2600 mm
7.12	Transportation Length	9000 mm
