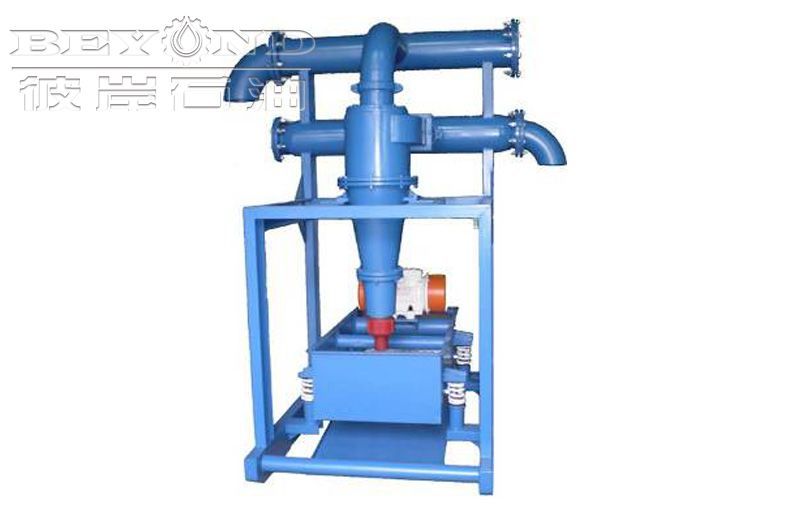

Desander

As a solids control equipment of the second stage in drilling operation, desander is used to remove harmful solid particles of 40-74µm in drilling liquid. Suspending particles can be separated from the liquid under the centrifugal acceleration, by use of working principle of centrifugal subsidence.

Kerwords：

Desander

Category：

Desander/Desilter

Solid Control Equipment & Spares

Email：

support@sdbeyondpetro.com

Phone：

+86-13475681371

Related Products

Online Consult

Desander

At present time, six types,JZQJ300×2,JZQJ250×2, JZQJ200×2 and JZQJ300×1, JZQJ250×1, JZQJ200×1are available. The former applies to over 3000-meter-long drills, and the latter applies to small drills of less than 3000 meters and service rig.

1. ZQJ Double Hydrocyclone Desander

Main Technical Parameter：

Model	JZQJ300×2	JZQJ250×2	JZQJ200×2
Hydrocyclone diameter	300mm	250mm	200mm
Working pressure	0.2～0.45MPa	0.2～0.45MPa	0.2～0.45MPa
Capacity	240 m³/h	200 m³/h	160 m³/h
Screen size	1240×585 mm	1240×585 mm	1240×585 mm
Screen spec	120-200 目	120-200 目	120-200 目
Inlet diameter	6″	6″	3″
Outlet diameter	8″	8″	6″
Motor power	0.5 kW	0.5 kW	0.5 kW
Weight	780 kg	740 kg	700 kg
Overall dimensions	1630×2018×2280mm	1630×2018×2215mm	1630×1875×2045mm

2. ZQJ Single Hydrocyclone Desander

Main Technical Parameter：

Model	JZQJ300×1	JZQJ250×1	JZQJ200×1
Hydrocyclone diameter	300mm	250mm	200mm
Working pressure	0.2～0.45MPa	0.2～0.45MPa	0.2～0.45MPa
Capacity	120m³/h	100m³/h	80m³/h
Screen size	1240×585 mm	1240×585 mm	1240×585 mm
Screen spec	120-200 mesh	120-200 mesh	120-200 mesh
Inlet diameter	6″	6″	3″
Outlet diameter	8″	8″	6″
Motor power	0.5 kW	0.5 kW	0.5 kW
Weight	680kg	640kg	620kg
Overall dimensions	1630×2018×2280mm	1630×2018×2215mm	1630×1875×2045mm
