Shale Shaker

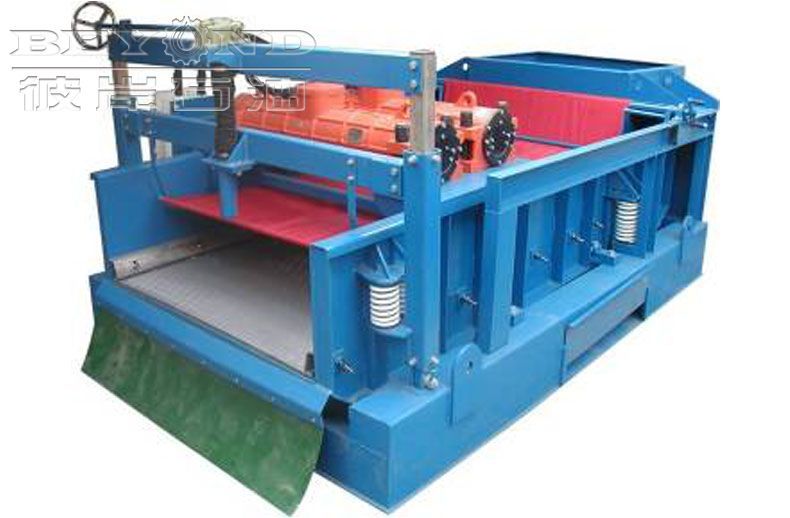

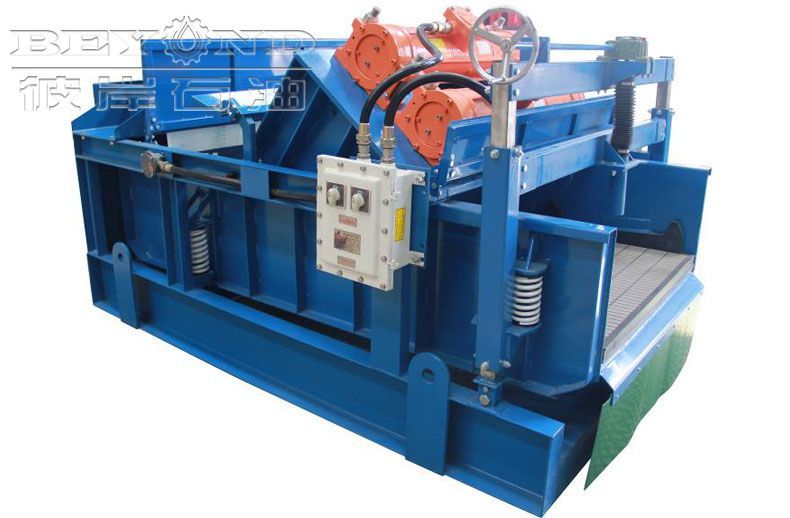

BYZS Series Shale Shaker is primary purification unit for solid control system. Linear or elliptical vibration separates coarse drill cuttings for primary mud treatment. Handling capacity 70～180 m³/h with 2～5 screen panels. Deck angle can be adjusted by screw lifting or hydraulic system. Wedge block and quick-release screen clamping are optional. Explosion-proof motors complying with Ex db IIB T4/IECEx/ATEX standards available. Stable operation and smooth cuttings discharge, the first core purification equipment for drilling solid control system.

✅ Dual-trajectory switchable | Linear / elliptical mode, adaptable to all drilling conditions
✅ Large screen with zero leakage | Large screening area, seamless sealing, no cuttings leakage
✅ Quick & easy maintenance | External clamping screen mesh for fast replacement; 304 stainless steel, corrosion-resistant & long service life
✅ High-strength efficient screen | Frame composite structure, impact-resistant with stable long-term screening performance
✅ Fast hydraulic angle adjustment | 8° upward in 20s, 8° downward in 5s
✅ Premium global core parts | Equipped with Oli / Martin / Italvibras vibration motors & international electric components for stable operation
✅ Dual slurry discharge | Bottom / side discharge optional, flexible for on-site installation
✅ Modular combination | 2/3/4/5-unit assembly available, matching various drilling throughput requirements
✅ High-efficiency negative pressure module | Vacuum adsorption reduces cuttings liquid content by 30%, for drier discharged solids
✅ Energy-saving operation | Pulsed working mode, lower power consumption & higher cost efficiency

Shale Shaker
Model	BYZS135	BYZS204	BYZS270A	BYZS270C	BYZS340C
Vibration Mode	Linear		Linear/Elliptcal
Treatment Capacity(m³/h)	70	110	140		180
Motor (kW)	2×0.75	2×1.5	2×1.72		2×2.2
Screen Qty	2	3	4		5
Screen Size(mm)	750×900	585×1165×40
Screen Area(㎡)	1.35	2.04	2.73		3.41
Output Force(G)	≤7.1G	≤7.5G	7.8/6.6		8.8/7.3
Double Amplitude(mm)	3.92～5.62	4.14～5.96	6.5/6.0		7.0/6.0
Deck Adjustment	+2°	-3～+3°		-2 ～ +6°
Weir Height(mm)	550	885	726	850
筛网压紧方式	楔形块			快速机构
角度调节方式	NA	丝杠升降		液压
E×plosion Standand	Ex db ⅡB T4 Gb / IECEX / ATEX
Weight (kg)	837	1365	2300	2100	2500
Dimension(mm)	1940×1360×970	2322×1650×1400	3039×1800×1665	2400×1900×1755	2850×1900×1755
