Jet Mixing Device

Jet mixing device is used to prepare or aggravate drilling fluid, change the density, viscosity, water loss of the drilling fluid. With the decive, the materials and agents can be mixed well.

Kerwords：

Jet Mixing Device

Category：

Agitators

Solid Control Equipment & Spares

Email：

support@sdbeyondpetro.com

Phone：

+86-13475681371

Related Products

Online Consult

Jet Mixing Device

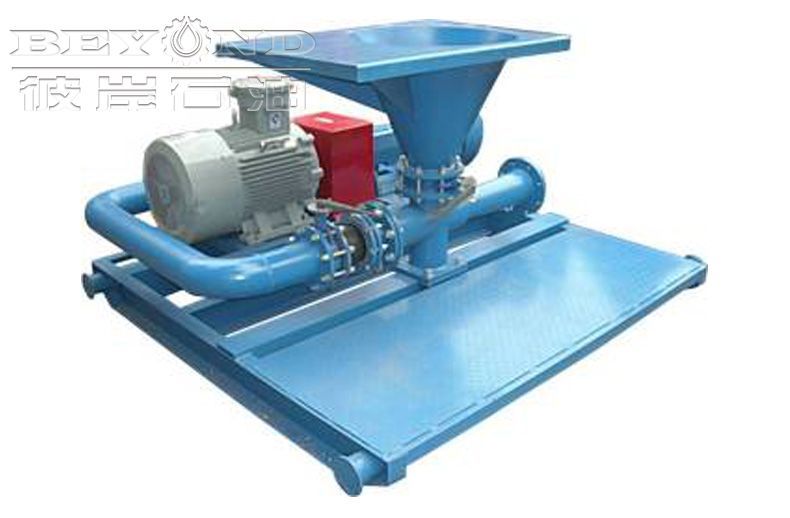

BYSL Series Jet Mud Mixer is independent skid-mounted mud mixing unit integrated with centrifugal sand pump and jet mud hopper. It adopts Venturi negative pressure principle to automatically suck powder, realizing rapid mixing and hydration of bentonite, polymer and drilling fluid for efficient mud preparation.
Working pressure 0.25～0.4 MPa, flow 45～320 m³/h, power 11kW～75kW. Explosion-proof motors complying with EXdIIBT4/IECEx/ATEX are optional. Models marked (D) are equipped with integrated electric control. Integrated skid design enables quick commissioning after pipeline connection, convenient transportation and installation, offering an efficient complete mud mixing solution for drilling sites.

✔ Integrated Skid Unit: Complete set with sand pump + jet mud hopper, pre-assembled and tested on skid
✔ Venturi Negative-pressure Mixing: Automatic powder feeding, sufficient hydration and bentonite saving
✔ Wide Model Range: Flow 45～320 m³/h, power 11～75kW for various mixing displacement
✔ Complete Explosion-proof Option: Motors meet EXdIIBT4, IECEx, ATEX hazardous area standards
✔ Optional Electric Control: Suffix (D) stands for integrated control system for centralized operation
✔ Easy Site Deployment: Integral skid transportation, less field assembly work and fast commissioning
✔ Stable continuous mixing, lower labor intensity and higher automation level for mud preparation

Model	Flow (m³/h)	Working Pressure (Mpa)	Power (kW)	Inlet Size(Inch)	Outlet Size(Inch)	E×plosion-proof Standard	Weight (kg)	Dimension (mm)
BYSL750-50(D)	320	0.25～0.4	75	DN200	DN150	Ex db IIB T4 Gb/IECEx/ATEX	2062	2200×1840×1070
BYSL550-45(D)	272		55	DN200	DN150		1732	2200×1840×1020
BYSL450-35(D)	200		45	DN150	DN150		1582	2200×1840×1060
BYSL370-35(D)	150		37	DN150	DN150		1492	2200×1840×1060
BYSL300-35(D)	120		30	DN125	DN150		1340	2200×1840×1020
BYSL220-25(D)	90		22	DN125	DN100		1136	1850×1540×930
BYSL185-25(D)	65		18.5	DN100	DN100		1045	1850×1540×950
BYSL150-20(D)	55		15	DN100	DN100		997	1850×1540×950
BYSL110-20(D)	45		11	DN100	DN100		977	1850×1540×950
Remark: The model aboved with Mark" D" means electrical control included, versus ignored when shows blank ; weight and dimensions are electrical control e×cluded.
