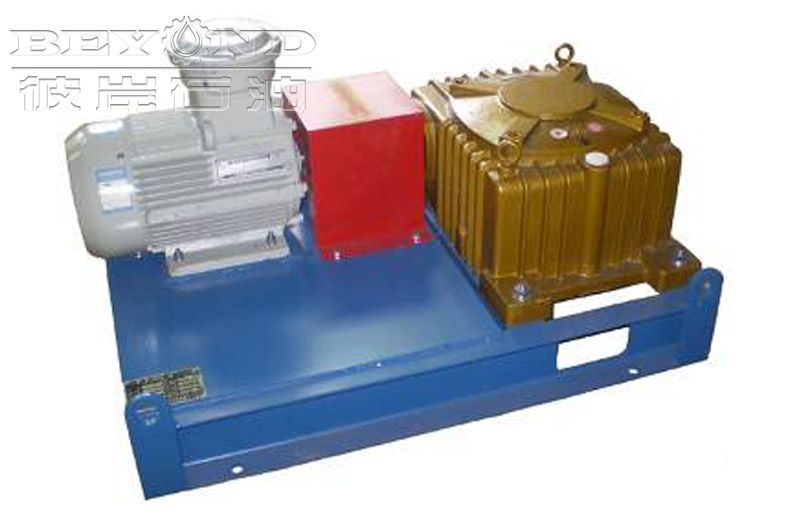

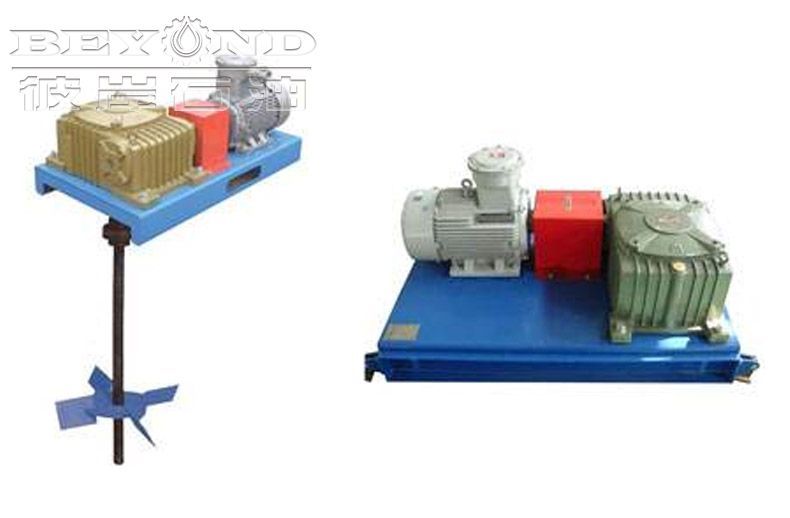

Mud Agitator
Drilling liquid agitator is used to provide continuous and reliable agitation of drilling liquid in order to retain uniformity of drilling liquid and keep solid particles suspending. It is of compact structure, light weight, transmission balance, low noise, high efficiency and strong capability, because the reducer adopts turbine worm single reduction gear.
Main Technical Parameter:
| Model | JNJ-5.5 | JNJ-7.5 | JNJ-11 | JNJ-15 |
| Motor power | 5.5 kW | 7.5 kW | 11 kW | 15 kW |
| Rotate speed of motor | 1450/1750rpm | 1450/1750rpm | 1450/1750rpm | 1450/1750rpm |
| Rotate speed of impeller | 60/70rpm | 60/70rpm | 60/70rpm | 60/70rpm |
| Impeller diameter | 600/530mm | 800/700mm | 1000/900mm | 1000/900mm |
| Shaft length | According to the mud tank depth | |||
| Weight(kg) | 310kg | 350kg | 500kg | 510kg |
| Overall dimension（kg） | 1015×700×550 | 1080×755×560 | 1260×810×640 | 1300×810×640
|
