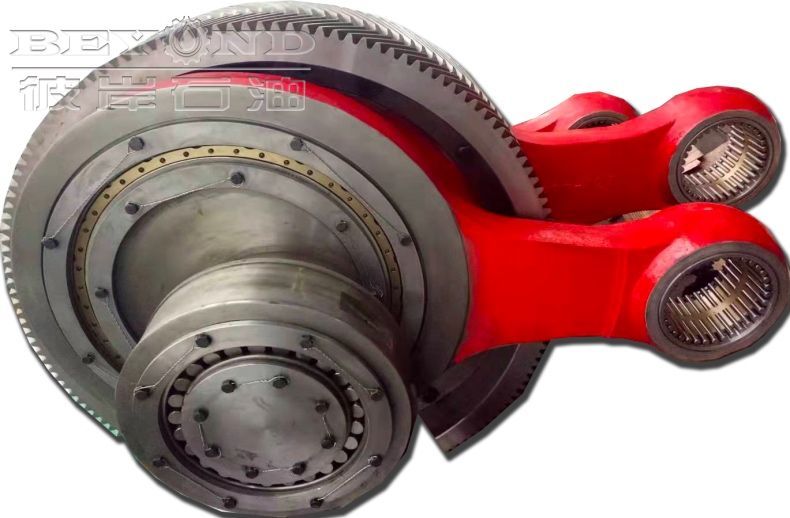

Crankshaft Assembly

The crank shaft assembly consists of crank shaft, ring gear, connection rod (with bearing) and the main bearing. The working clearance of bearing is pre-determined by the fitting precision of the installed shaft and the relevant holes.

Kerwords：

Crankshaft Assembly

Category：

Pump Spares

Reciprocating Pump Solutions

Email：

support@sdbeyondpetro.com

Phone：

+86-13475681371

Related Products

Online Consult

Crankshaft Assembly

F-1600 MUD PUMP CRANKSHAFT ASSEMBLY

Item	Quantity	Name	Drawing No.
1	2	Main bearing cover	AH3700-01.01C.00
2	1	Main bearing sleeve (right)	AH37001-01.02
3	2	Sealing gasket	AH36001-02.03
4	2	Inner stop collar	AH36001-02.04
5	3	Outer stop collar	AH37001-01.03
6	3	Connection rod	AH37001-01.04
7	1	Positioning ring (I)	AH36001-02.07
8	1	Hollow crankshaft	AH36001-02.08A.00
9	1	Positioning ring (II)	AH36001-02.09
10	1	Big ring gear	AH37001-01.05D.00
11	12	Bolt M39×3-6g×140	T52-3007
12	2	Isolating ring	AH36001-02.12
13	1	Main bearing sleeve (left)	AH37001-01.06
14	2	Stop collar	AH37001-01.07
15	2	Baffle plate	AH36001-02.15
16	4	Main bearing bolt	AH36001-02.16C
17	If demanded	Shim set	AH36001-02.17
18	2	Screw M16×120	T52-6006K
19	12	Bolt M39×3-6H	T57-3005.0
20	72	Bolt M16×40	T57-7003K
21	28	Bolt M16×45	GB5780-86
22	3	Eccentric wheel bearing	AH37001-01.08.00
23	2	Main bearing	AH37001-01.09.00
24	28	Gasket 16	GB848-85
25	40m	Locking steel wire F1.5	GB343-82
26	3m	Locking steel wire F	GB343-82
27	90ml	Thread anaerobic locking sealant	Le Tai glue 243
28	2	Screw M16×100	T52-6004K
