CATEGORY
Air winch is a single-drum hand-operated pneumatic winch powered by a piston air motor. It relies on compressed air as the power source, drives the motor, and drives the drum to rotate through the secondary gear reduction to achieve lifting and dragging of various heavy objects.
Advantage:
1. Small size, light weight and strong mobility.
2. Stepless speed change can be realized, and forward and reverse operation can be flexibly performed.
3. Strong practicability and strong explosion-proof, especially suitable for various harsh working environments such as high humidity, flammable, explosive, rain and snow.
4. Large starting torque, can start with load.
5. With overload protection function.
Hydraulic winch is a light and small lifting equipment that uses a drum to wind a steel wire rope to lift or pull heavy loads. The hydraulic winch designed and manufactured by our company introduces advanced Italian technology and further improved new products. Its structure mainly includes cycloid motor, hydraulic Normally closed multi-disc brake, planetary reducer, drum support and other components.
BEYOND can supply below drilling tool product:
1. Drill String: Kelly pipe, drill pipe, HWDP, Drill Collar, IBOP etc.;
2. Oil Tubular: API-5CT full series of casing tubing pipe, API-5L ERW pipe for water wells:
3. Downhole Tools: Mud Motor, Drilling Jar, Stabilizer, various fishing tools etc.;
4. Oil Sucker Tools: API-11B sucker rods,sucker rod couplings, pony rods, polished rod etc.;
5. Drill Bit Product: Oilfield drilling bits like tricone and PDC, engineering bit for water well trenchless drilling:
BEYOND can supply below drilling tool product:
Drill string: Kelly pipe, drill pipe, HWDP, Drill Collar, IBOP etc,;
Model DDZ Center Latch Elevators are suitable for handling 18 taper shoulder drill pipe, drilling tools and etc. The Elevators are designed and manufactured according to API Spec 8C-specification for drilling and production Hoisting Equipment. DDZ TD means Top Drive Elevator.
Type SJ auxiliary elevators are designed and manufactured in accordance with API Spec 8C in our company. They have a complete range of sizes. They are widely used in drilling, servicing and cementing for oil and gas well. Type SJ auxiliary elevators are the requisite hoisting tools for catching single pipe up and down.

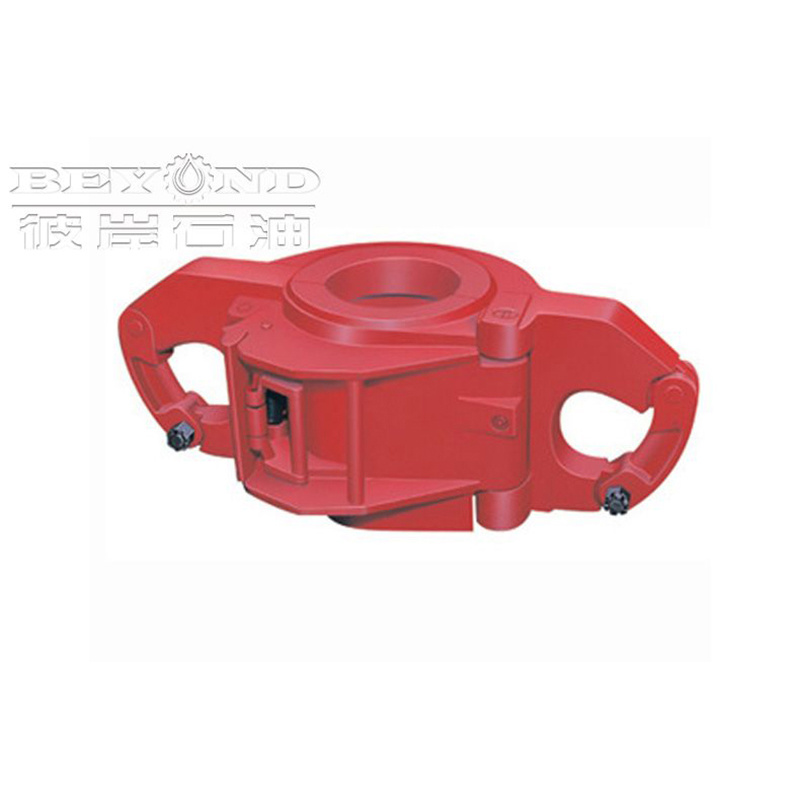

The SLX series side door elevators are hoisting tools for handling drill pipe, casing, tubing and drill collar in oil and gas fields. They are designed and manufactured according to API Spec 8Cspecification for drilling and production Hoisting Equipment.

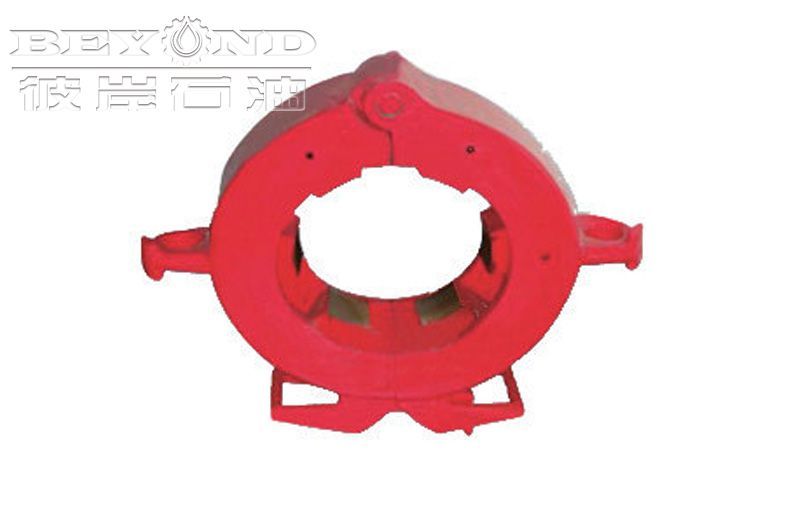

Type SP auxiliary elevators are designed and manufactured in accordance with API Spec 8C in our company. They have a complete range of sizes. They are widely used in drilling, servicing and cementing for oil and gas well. Type SP auxiliary elevators are the requisite hoisting tools for catching pipe with degree up and down.

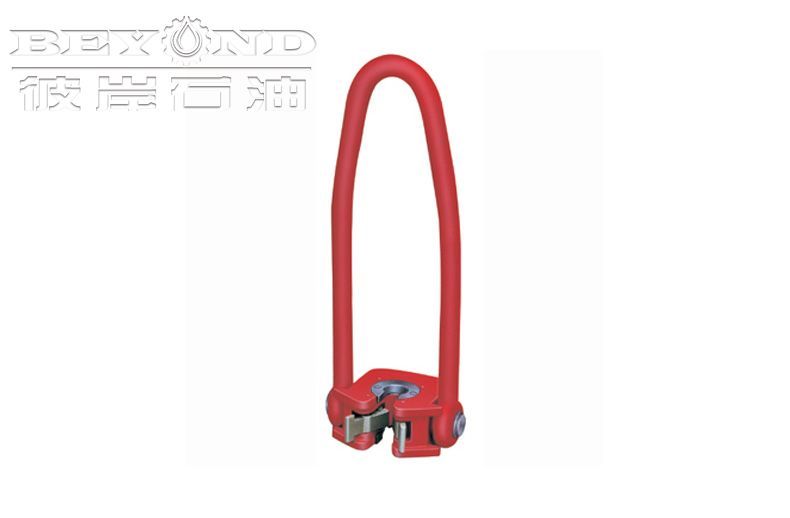

SRE series sucker rod elevator is composed of elevator body and rod plates, which allow quick convert ion of the elevator body to various rod or pipe size. Additional saving is realized because work plates can be replaced instead of replacing the entire elevator. The basic elevator design provides excellent balance and non-tilt performance. Large access to the front and rear release levers assures easy, safe latching and unlatching. They are designed and manufactured according to API Spec 8C- specification for drilling and production Hoisting Equipment.
