Beyond Engineering&Mining C Type Diesel Driven Air Compressor Instruction
Author:

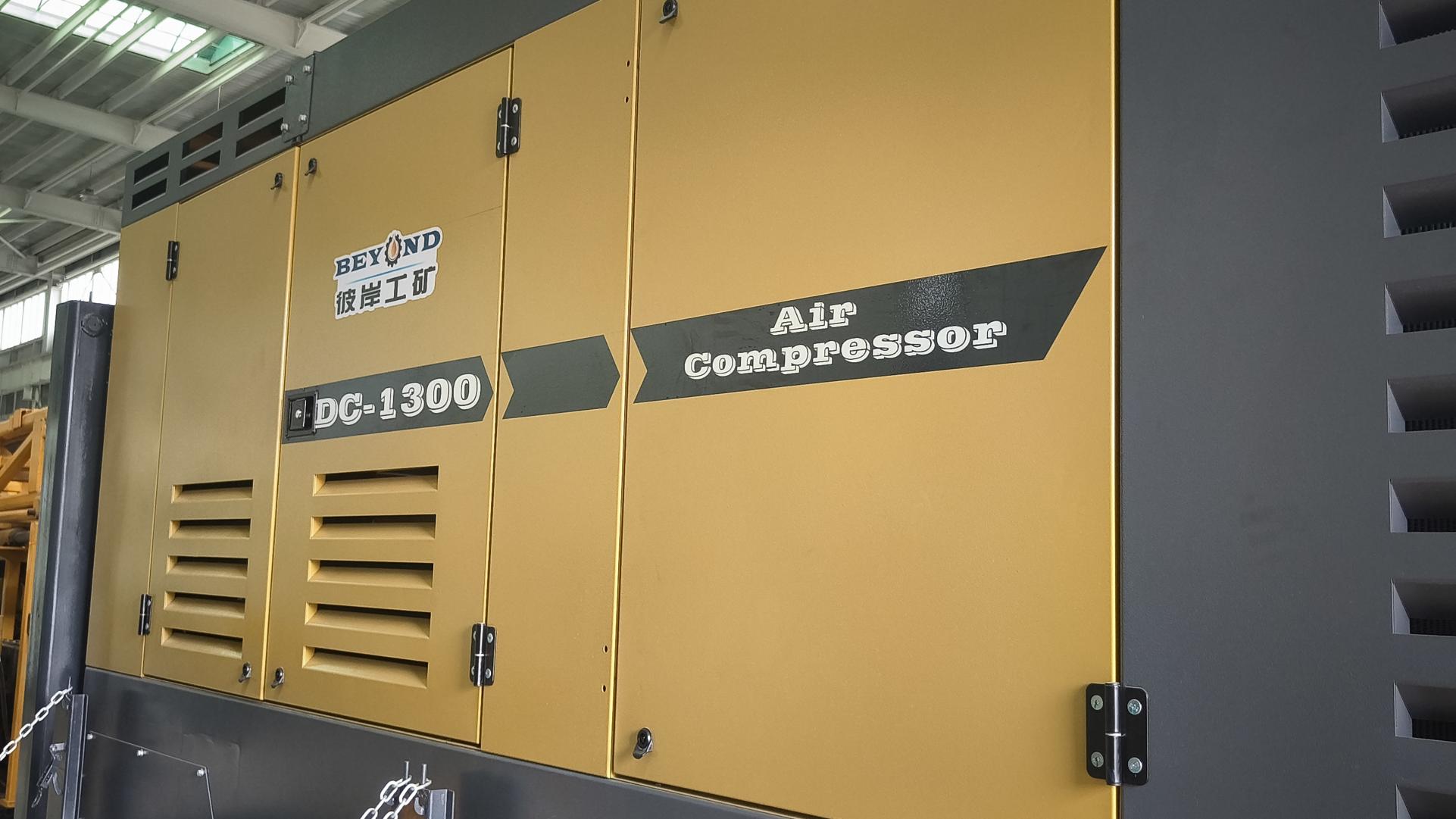

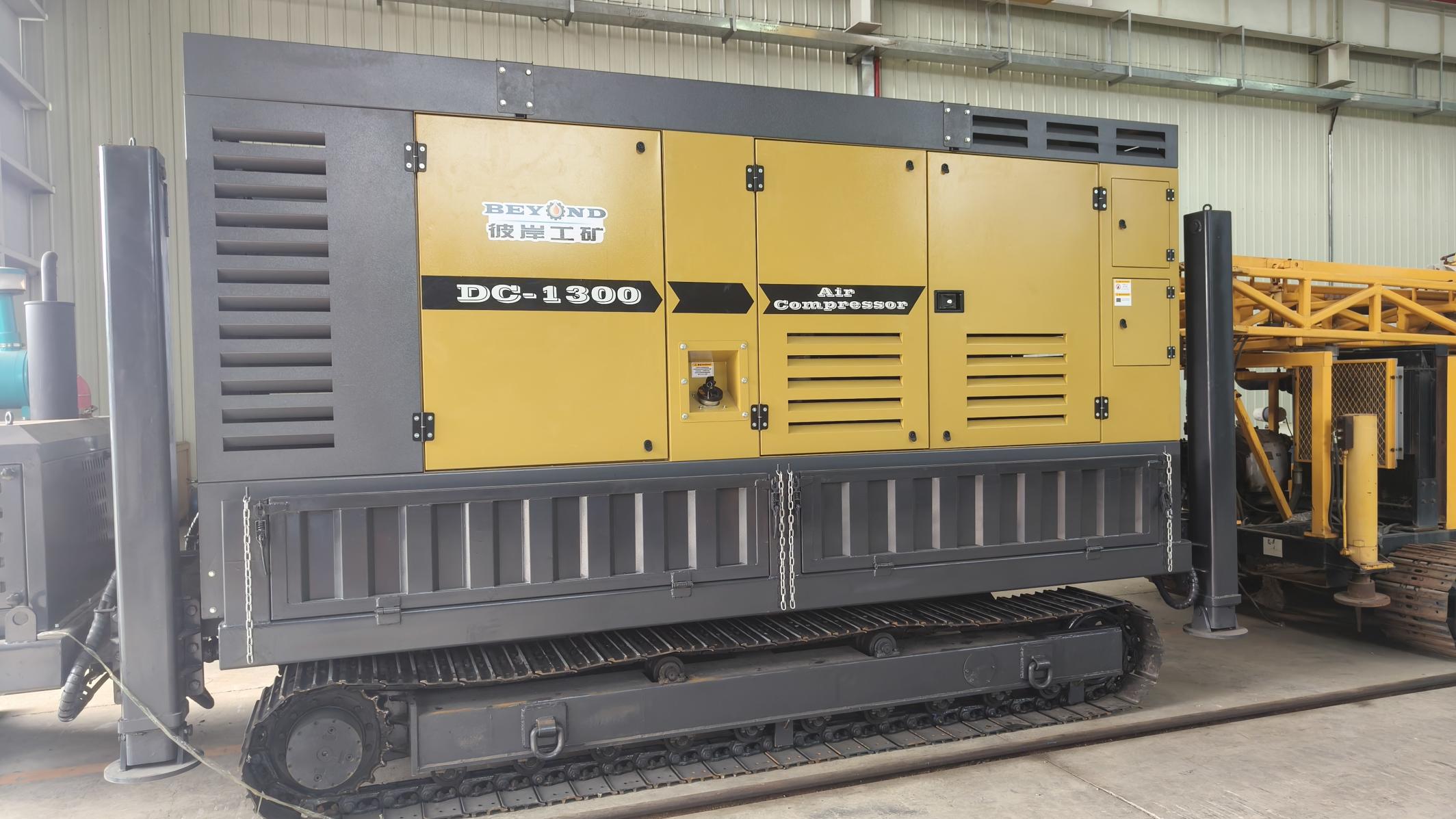

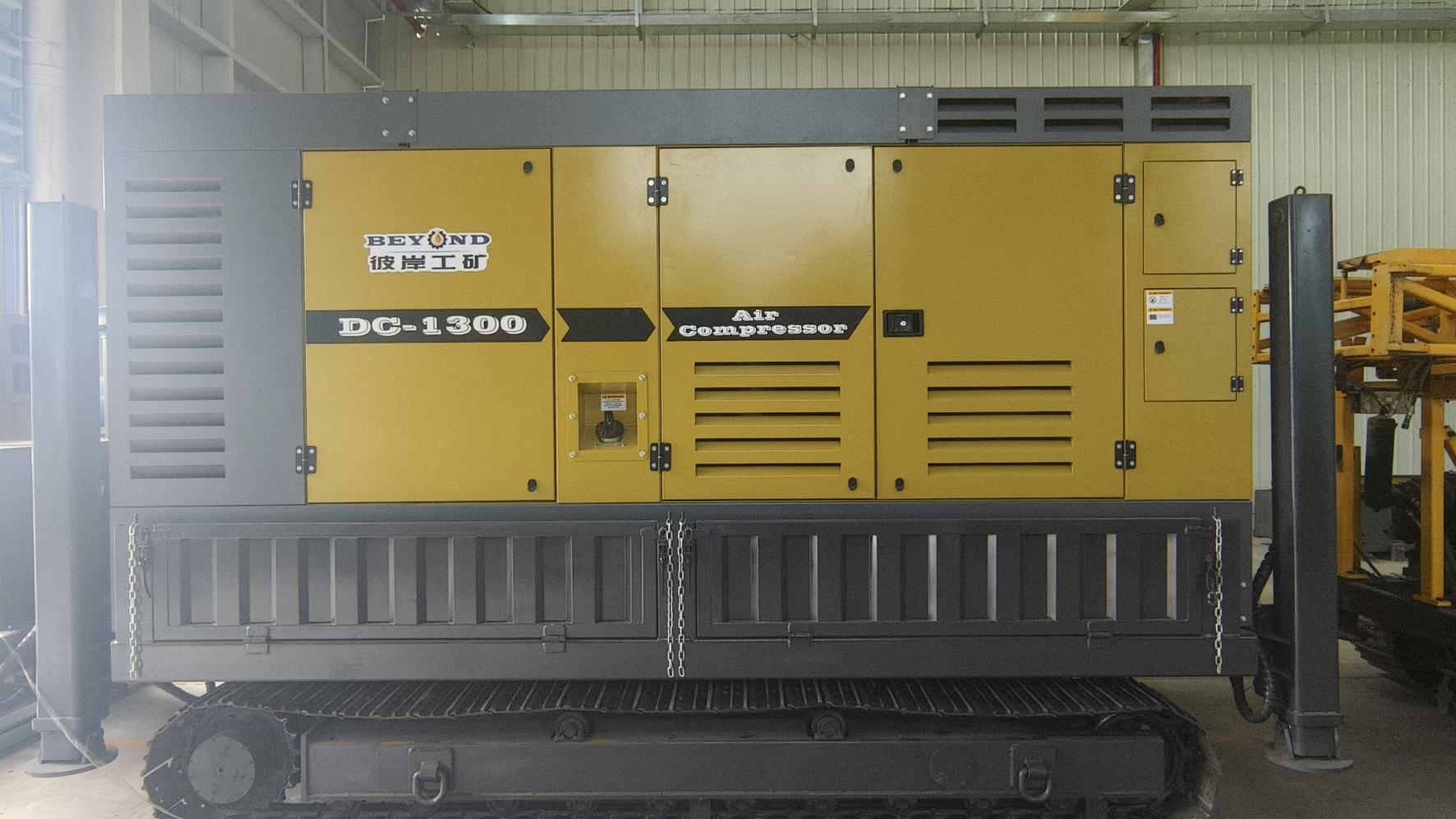

Beyond Engineering&Mining C Type Diesel Driven Air Compressor Instruction
An air compressor is a device used to compress gas. Its construction is similar to that of a water pump. Most air compressors use reciprocating pistons, rotary vanes, or rotary screws.
Basic parameters of the Beyond Engineering&Mining C Type Diesel Driven Air Compressor
Air compressor model | C1100 | C1100-IV | Y1100 | C1300 | C1400 | C1588 | C1688 | V1588 | V1525H | |
Air compressor | Displacement (m³/min) | 30-26 | 31-27.5 | 32-25 | 36.8-32 | 40-35 | 45-36.8 | 48.5-45 | 45-40 | 43.2-38-35 |
Working pressure range (bar) | 15-25 | 15-25 | 15-30 | 18-34 | 18-35 | 15-35 | 15-20 | 25-35 | 25-35-40 | |
Oil Capacity (L) | 110 | 120 | 140 | |||||||
Fuel tank capacity (L) | 500 | 400 | 700 | 940 | 1100 | |||||
Engine | Manufacturer | CUMMINS | CUMMINS | YUCHAI | CUMMINS | CUMMINS | CUMMINS | VOLVO | ||
Model | L9 PLUS T3 | L9CS4 430C | YC6MK400-H300 | QSZ13- | QSM15 | QSM15 C77 | TAD1643VE | |||
Rated power (kw) | 294 | 316 | 295 | 410 | 563 | 563 | 563 | |||
Operating speed (rpm) | 1850 | 1900V1650 | 1900/1650 | 1900V1700 | 1900/1700 | 1900/ | 1750/ | 1850/ | 1900/1700/ | |
Unloading speed (rpm) | 1400 | 1400 | 1400 | 1400 | 1350 | 1350 | 1350 | |||
Total weight | Skid-mounted(kg) | 4000 | 4500 | 5000 | 6000 | 6200 | 6500 | 6800 | ||
Trailer-mounted (kg) | 4750 | 5300 | 5800 | 6800 | 7000 | 7500 | 7800 | |||
Dimension(mm) | Skid-mounted (mm) | 3200x1860x2250 | 3550x1860x2150 | 3850x1800x2250 | 4150x2000x2350 | 4850x2150x2450 | ||||
Skid-mounted (mm) | 3750x1860x2550 | 3750x1860x2550 | 4150x1800x2450 | 4450x2000x2550 | 5400x2150x2600 | |||||
Optional configuration | Low temperature working condition package | Optional | Standard configuration | |||||||
Plateau working condition package | Optional | |||||||||
Special Note:
When operating in ambient temperatures below -10°C, a low-temperature operating package is required.
When operating at altitudes above 3,000 meters, a high-altitude operating package is required.
Main Components:
Engine Control Panel Screw host
