Beyond Shipment for 3MC 75 High Pressure Plunger Pump

Author:

3MC 75 high pressure plunger pump is a horizontal three-plunger reciprocating pump, a type of positive displacement pump. This pump is a new type of plunger pump developed and designed according to the requirements of drainage and gas production process. It has high pump pressure, good energy saving effect, stable and reliable operation, low carbon and environmental protection, and a wide range of pump pressure and displacement adjustment.

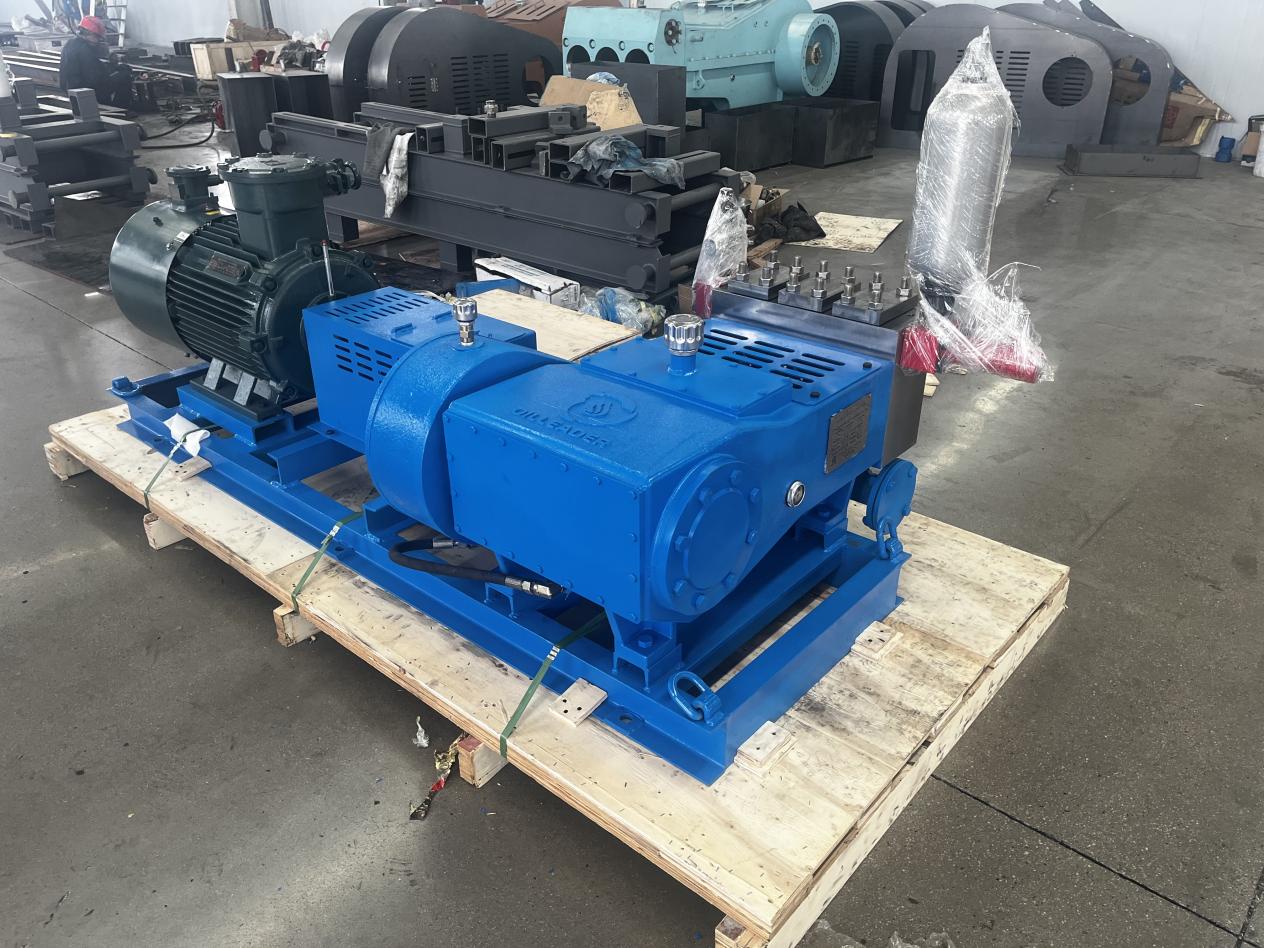

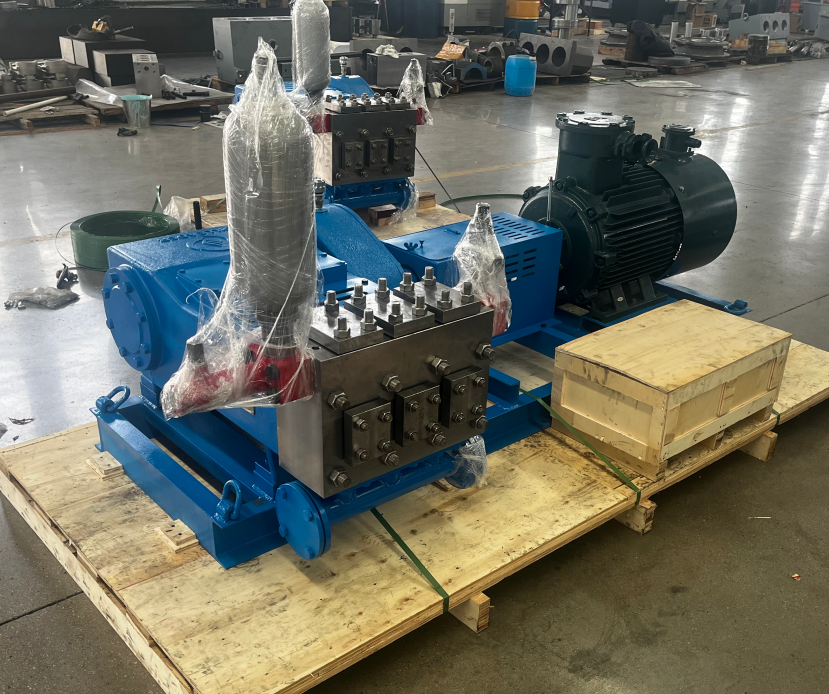

The pump consists of a power end, a hydraulic end, a transmission part and an electric motor. The whole pump is installed on a skid-mounted integral metal base. The pump body adopts a symmetrical design, with inlets and outlets at both ends, which can be interchanged and convenient for placement and installation. The outlet is equipped with a safety valve and a bladder accumulator. The overall structure has the advantages of compact structure, small size, light weight, light and flexible movement, convenient operation and maintenance, stable and reliable operation, and high efficiency. It also has multiple protection functions such as overload, phase failure, pressure loss and pump inlet and outlet pressure control.

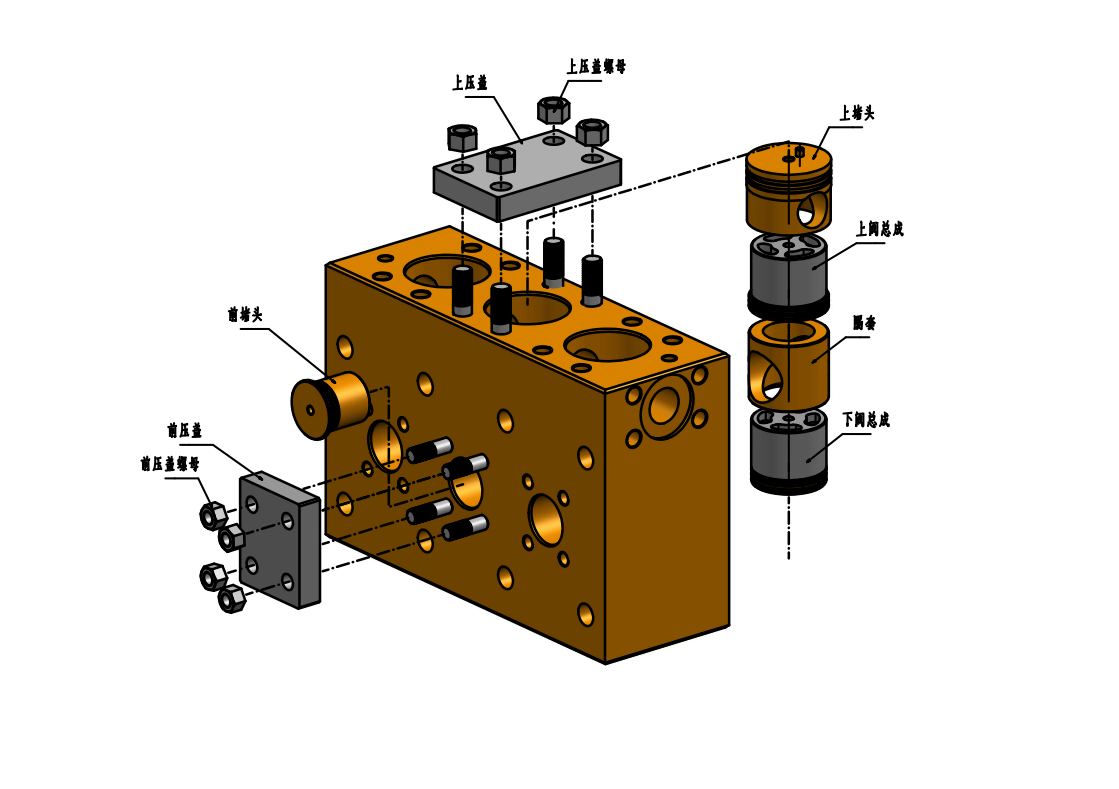

1、上压盖 upper cover；2、上压盖螺母 upper cover nut；3、上堵头 upper plug；

4、上阀总成 upper valve assembly；5、隔套 spacer bush；6、下阀总成 lower valve

assembly；7、前堵头 front plug；8、前压盖 front cover；9、前压盖螺母 front cover nut

The hydraulic end of the pump adopts a combined sealing cone valve structure, an integral stainless steel pump head structure, and a ceramic plunger . It has the advantages of corrosion resistance, simple structure, convenient operation and maintenance, high pump efficiency, and long service life of the hydraulic end pump head and wearing parts. It is used to transport clean water and sewage containing suspended matter at a temperature not exceeding 60 ℃.

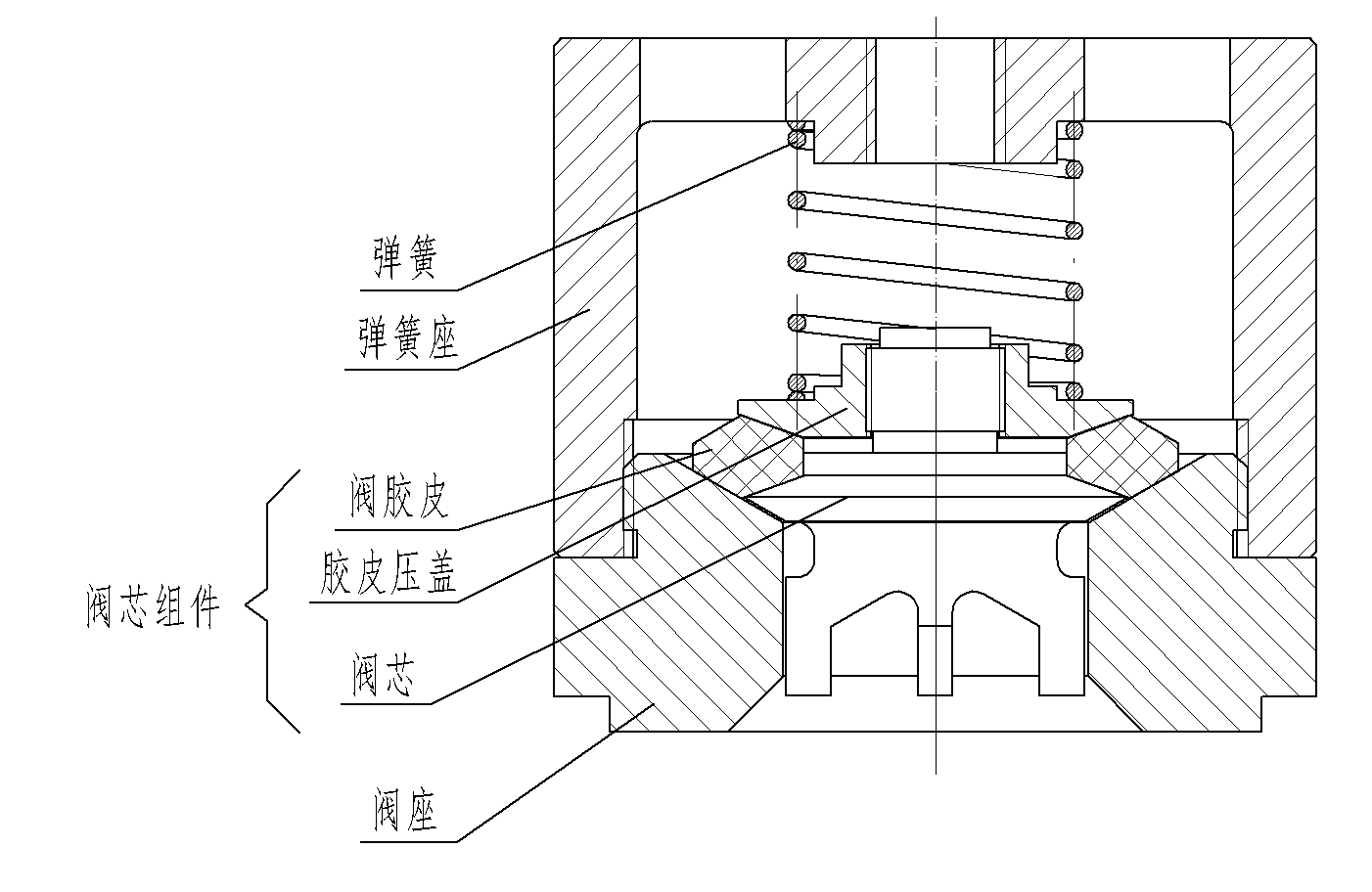

1、弹簧 spring；2、弹簧座 spring seat；3、阀胶皮 valve rubber；4、胶皮压盖 rubber

cover；5、阀芯 valve core；6、阀座 valve seat；7、阀芯组件 valve core assembly

According to the needs of users, it can be equipped with ordinary motors, explosion-proof motors, electromagnetic speed-regulating motors and variable frequency speed-regulating motors. We can also design and manufacture high-pressure pumps of special specifications according to the requirements of users.

No.	Product Name		Specification	Note
1	Product model		3MC75-8/10
2	Conveying medium		Weakly acidic water	2Cr13 pump head
3	Medium temperature		0-60℃
4	Inlet pressure		0.03-0.3MPa
5	Outlet pressure		10MPa
6	Theoretical flow rate		8m³/h
7	Plunger /piston diameter		50mm
8	Plunger stroke		75mm
9	Pump speed		329rpm
10	Safety valve setting value		12MPa
11	Inlet and outlet buffer	Accumulator (volume x pressure)	Export 4LX16MPa
11	Inlet and outlet buffer	Spherical stabilizer	-
12	Inlet pressure gauge/sensor		-
13	Outlet pressure gauge/sensor		Shock-resistant pressure gauge 16Mpa
14	Belt	Small pulley (diameter x number of grooves)	-
14	Belt	Large pulley (diameter x number of grooves)	-
15	Gearbox	Model	External reduction gearbox
		Form	First-stage reduction
		Speed ratio	4.5
16	Electrical motor	Model	YBBP-225S-4
		Power	30kw
		Speed	1480rpm
		Voltage	380V
		Frequency	50Hz
		Protection level	IP54
		Frequency conversion/explosion proof/marine	Frequency conversion explosion-proof

In addition, Beyond Petroleum can also provide a variety of pump types and pump groups such as F mud pumps and BW pumps. If you have any needs, please feel free to contact Beyond. Thank you.
