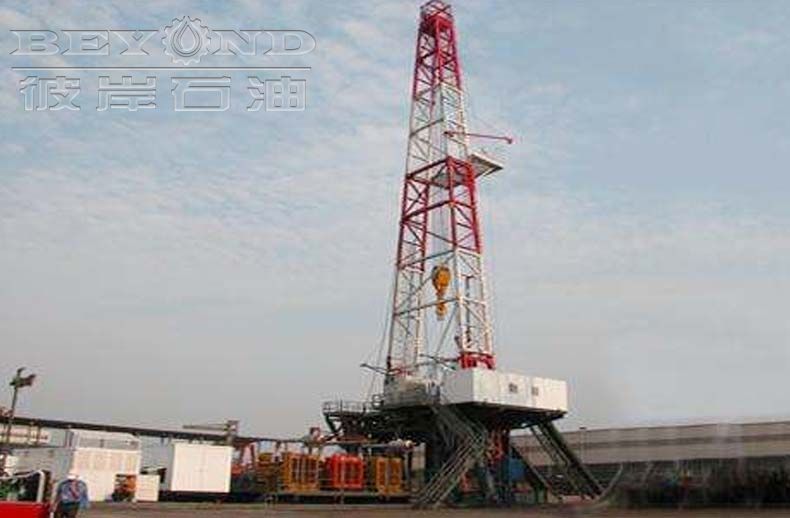

Electromechnical Drilling Rigs

Electromechnical Drilling Rigs is powered by diesel engines coincident with hydraulic torque converter which drives drilling winch, mud pump, automatic air compressor and energy saving generator by integral chain box drive.Power between power package, transmission unit and work unites is conveyed by cardan shaft. Drawworks equips with the auxiliary drive device to lift up and down the derrick, to automatic driller and boot up in emergency. K type derrick with assembling placed on the ground and raising/ laying down as a whole can equip with top drive; Box on box type substructure(swing-up type for ZJ50 and ZJ70 rigs) ensures conveniently disassemble and assemble, good stability and high safety. Rotary table is driven by Drawworks power through special rotary table drive unites or independently driven by AC VF motors.

Kerwords：

Electromechnical Drilling Rigs diesel engines coincident

Category：

Drilling Rigs

Skid-mounted Rig

Oil Drilling Sector

Combined Drilling Rig

Email：

support@sdbeyondpetro.com

Phone：

+86-13475681371

Related Products

Online Consult

Electromechnical Drilling Rigs

Electromechnical Drilling Rigs:

Feature of Electromechnical Drilling Rig:

1. Drill rig models and basic technical parameters conform to Chinese petroleum industry standards. All main components conform to specifications;
2. Diesel engine drives drilling winch, mud pump, automatic air compressor and energy saving generator by integral chain box, therefore it makes the drive smoothly and produces high efficiency;
3. Drawworks is assembled on the ground, and the disc brake is being used as master brake, and the electromagnetism eddy brake (or EATON brake) is being adopted as secondary brake, they are jointly used as the auxiliary drive device to raise and lie down the derrick, drive automatic driller and boot up in emergency;
4. The mast with K type derrick and all equipment are assembled on the ground and then raised integrally. Top drive is available on the top; Box on box type substructure (swing-up type for ZJ50 and ZJ70 rigs) ensures conveniently disassemble and assemble, good stability and high safety;
5. Power transmits among power package, transmission unit and work unites with cardan shaft transmission which ensures to line in easily and assemble quickly;
6. Drawworks power drives rotary table through special drive unite, little power equipment and low rigs cost;
7. Rotary table is independently driven by AC VF motors, and the torque and speed of the rotary table is digital controlled and protected which can be constantly adjusted.

Specifications Of Electromechnical Drilling Rigs:

Type Technical Spec.	ZJ20	ZJ30	ZJ40	ZJ50	ZJ70
Drilling Depth(M)	2000	3000	4000	5000	7000
Max. hook load (KN)	1470	1700	2250	3150	4500
Power of Drawworks (HP)	650	750	1000	1500	2000
Drive	Mechanical (belt/chain)	Mechanical (belt/chain)	Mechanical /Electric(AC/DC)/ Combined	Mechanical/ Electric(AC/DC)/ Combined	Mechanical/ Electric(AC/DC)/ Combined
Mast Height(M)	35	36/38	42	45	45/48
Substructure Height (M)	4.5	5.0	6.7	7.5	9.0
Rotary Table	ZP205	ZP275	ZP275	ZP375	ZP375
Mud Pump	F/3NB-800	F/3NB-1000	F/3NB-1300	F/3NB-1600	F/3NB-1600
Power of Mud Pump（HP/KW）	800/588	1000/735	1300/956	1600/1180	1600/1180
Mud Handing Capacity(m³)	160	185	240	300	360
Rope Diameter (mm)	29	29/32	32	35	38
Wireline System	4x5	5x6	5x6	6x7	6x7
ManifoldsDiameter(mm)×Pressure(MPa)	∮103x35	∮103x35	∮103x40	∮103x70	∮103x70
