BEYOND 2 sets of F-1000 mud pump unit delivered to Indian client

Author:

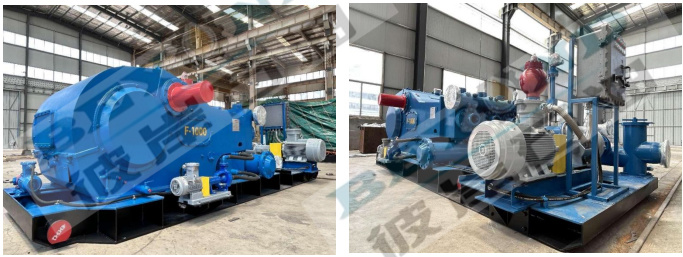

General structure of this F-1000 pump unit

Recently, BEYOND provided two sets of F-1000 drilling mud pump unit to Indian client, which have been produced and delivered on time according to client’s requirements.

General structure of this F-1000 pump unit:

The Pump unit is completed with: Power unit, Pump assembly and supercharging system etc.

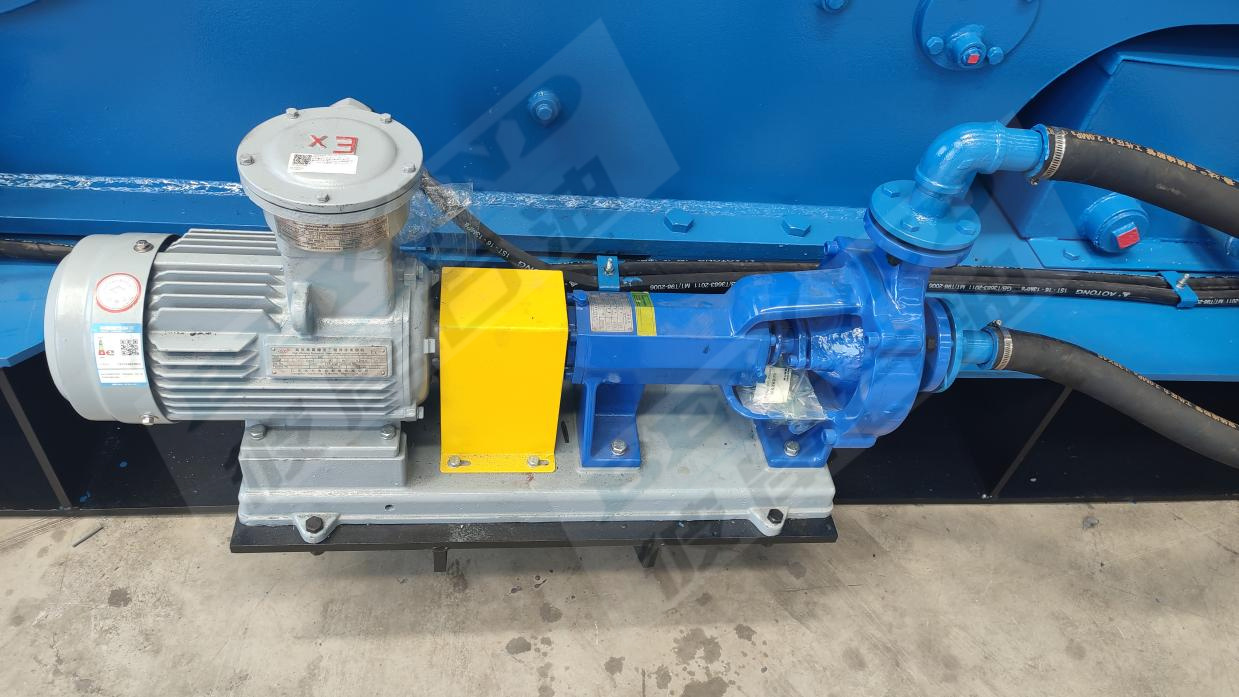

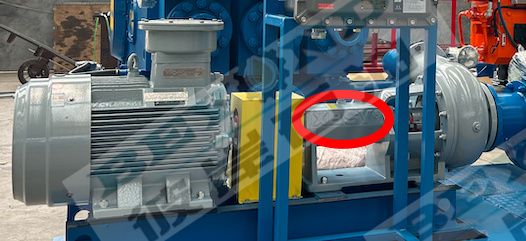

The whole unit is in the form of “T”. Transmisson way: the power from the diesel engine(Cummins KTA38-C1300) is transferred through Reastar Gear box, Cardan shaft to drive the pump and make it working. The super-charging pump will greatly strengthen the suction effect of the mud pump.

The engine, gearbox and transmission shaft are installed on one skid, and the mud pump and super charging pump system are installed on the other skid.

Diesel Engine Info:
Model	Cummings KTA38-C1300
Maximum power	970KW(1300BHP)@2000RPM
Maximum Torque	5500N.m@1400RPM
Cylinder diameter × Stroke	159×159mm (6.25”×6.25”)
Displacement - L (in3)	38 (2300)
Engine Type:	Four-stroke, 60°V-type, 12-cylinder;
Mode of Air Intake:	Exhaust Gas Turbocharger, intercooling.
Max Fuel Consumption:	208 (g/kw.hr)
Engine Flywheel:	SAE18”; Flywheel Housing: SAE0#

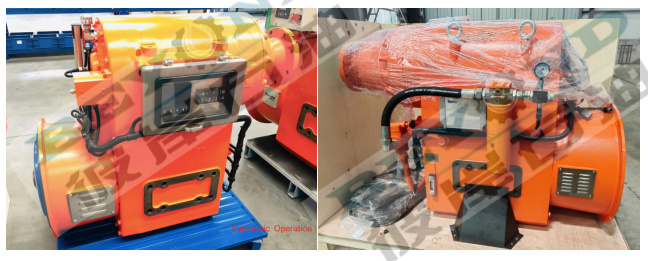

Reastar Gearbox Info:(Make: Reastar China)
Model:	NT-2040A-C1000 (automatic operation)
Max. Input speed:	2100 rpm
Max. Output Torque:	20000N.m
Number of Gears:	4
Gear Ratio from gear 1 to 4:	6.959/5.233/3.746/2.880
Central Distance:	542mm
Clutch:	air control
Direction of Rotate:	same as engine
Input Connection:	Flywheel: SAE18”; Flywheel Housing: SAE0#
Output Connection:	Flange as per JB/T5513-1991 Standard

F-1000Mud Pump Specifications:
Type				Horizontal Triplex Single Acting Piston Pump			Gear Type				Herringbone Gear
Input Power (KW/HP)				746/1000			Gear Ratio				4.207：1
Rated Stroke (SPM)				140			Lubrication				Forced & Splashing
Stroke Length（inch）				10〃			Valve Cavity				API-6#
Inlet Connection				12〃			Outlet Connection				5 1/8〃Flange 5000PSI
Weight（Kg/Pound）				18790/41425			Overall Dimension（L×W×H）				168〃×124.7〃×101.6〃
SPM	Rated Power		Liner Dia. (in) and Pressure Rating (Mpa / psi)
			6-3/4”		6-1/2”	6-1/4”		6”	5-1/2”	5”		4-1/2”	4”
			16.35 2370		17.63 2555	19.07 2765		20.69 3000	24.62 3570	29.79 4320		35 5075	35 5075
	HP	KW
			Displacement (L/S)/(gpm)
140	1000	746	41.05 651		38.06 603	35.19 558		32.43 514	27.25 432	22.52 357		18.24 289	14.41 228
130	929	692	38.12 604.2		35.35 560	32.68 518		30.12 477	25.31 401	20.91 331		16.94 269	13.39 212
120	857	639	35.18 558		32.63 517	30.16 78		27.80 441	23.36 370	19.31 306		15.64 248	12.36 196
110	786	596	32.25 511		29.91 474	27.65 438		25.48 404	21.41 339	17.70 281		14.33 227	11.33 180
100	714	533	29.32 465		27.19 431	25.14 398		23.17 367	19.47 309	16.09 255		13.03 207	10.30 163
Based on 100% volumetric efficiency and 90% mechanical efficiency
