Hot Sales of Elevator link of BEYOND

Elevator links is a special wellhead tool for lifting and lowering the pipe. It will be hanging on the elevator during drilling and workover operations. It requires strong bearing capacity, impact resistance, light weight, high safety, and reliability. The upper part of the elevator links is hanging on the auxiliary hooks on both sides of the hook, and the lower part is hanging on the lifting part of the elevator. The connecting part between the elevator links, the elevator and the hook must complies with the regulations of SY5288=2000.

There are two types of elevator links: single-arm and double-arm; double-arm elevator links are often used in shallow wells, and the load-bearing capacity is no greater than 1350kN. DH1350 and SH1350 are commonly used in drilling equipment.

Elevator links parameters：

Model	Rated load KN	Working length mm
DH100	900	1500
DH150	1350	1800
DH250	2250	2700
DH350	3150	3300
SH75	675	1500
SH150	1350	1700

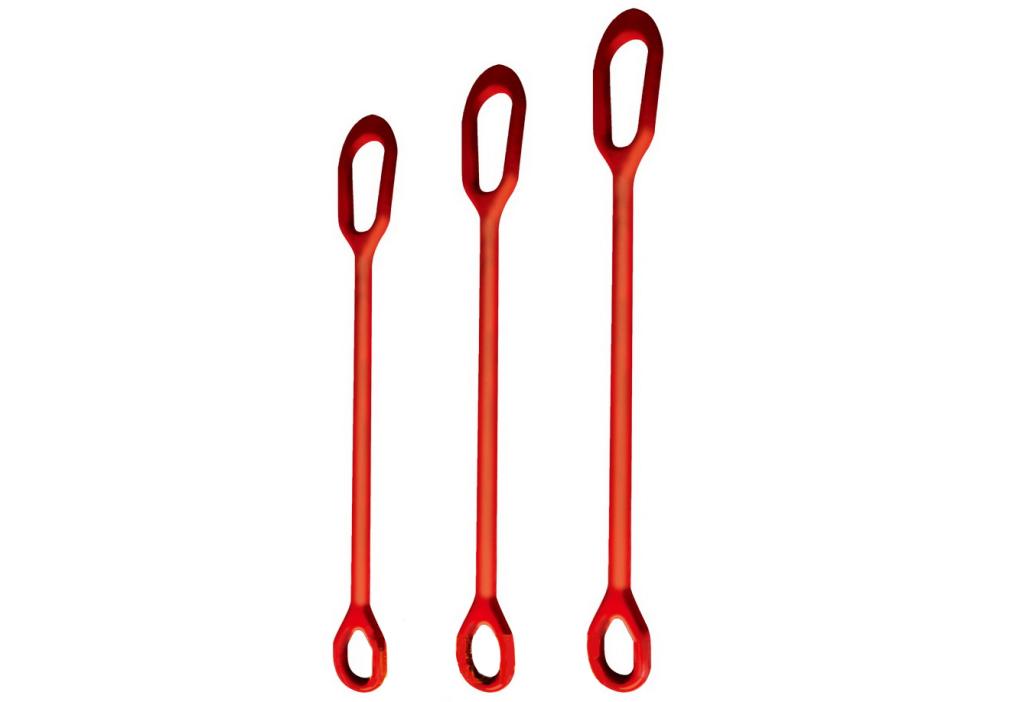

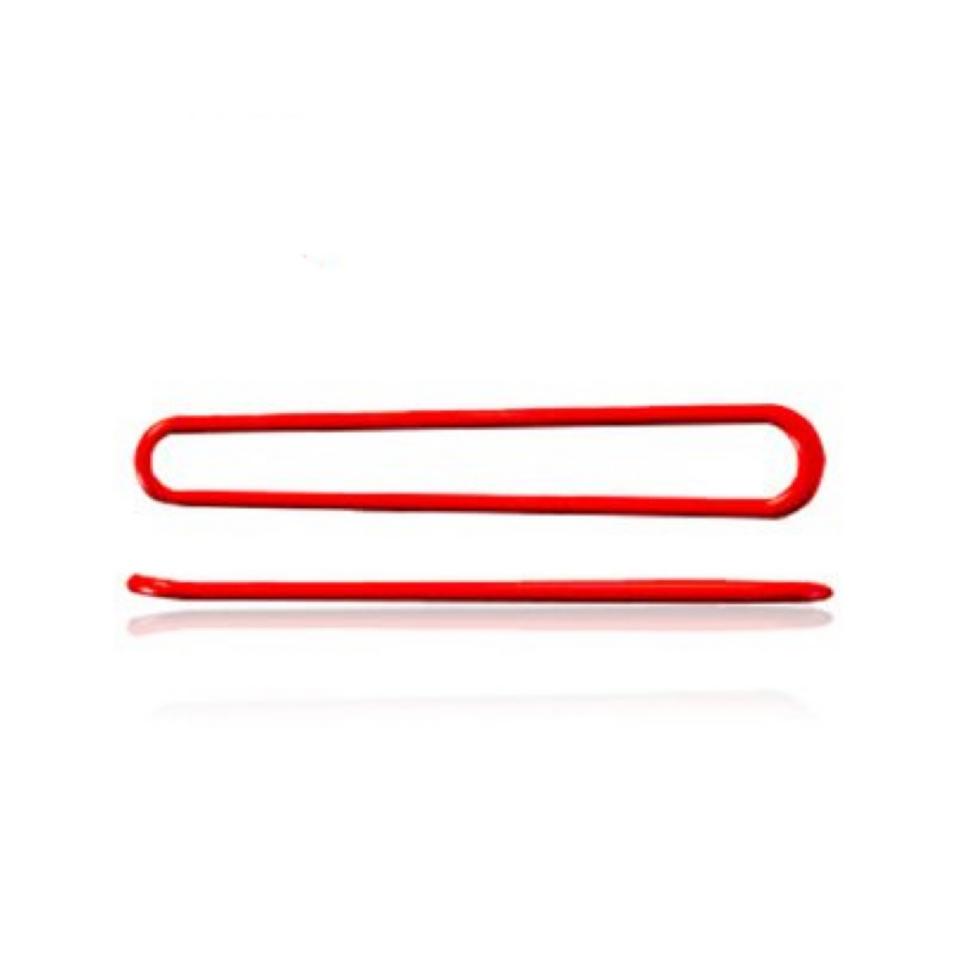

The single-arm elevator links is forged as a whole, and the material is made of ultra-high-strength steel, and the double-arm elevator links is forged and welded by high-quality alloy steel. All elevator links are carefully heat and surface treated for high standard strength and toughness.
