Two UNBT-1180L Pumps shipped to Russia

Author:

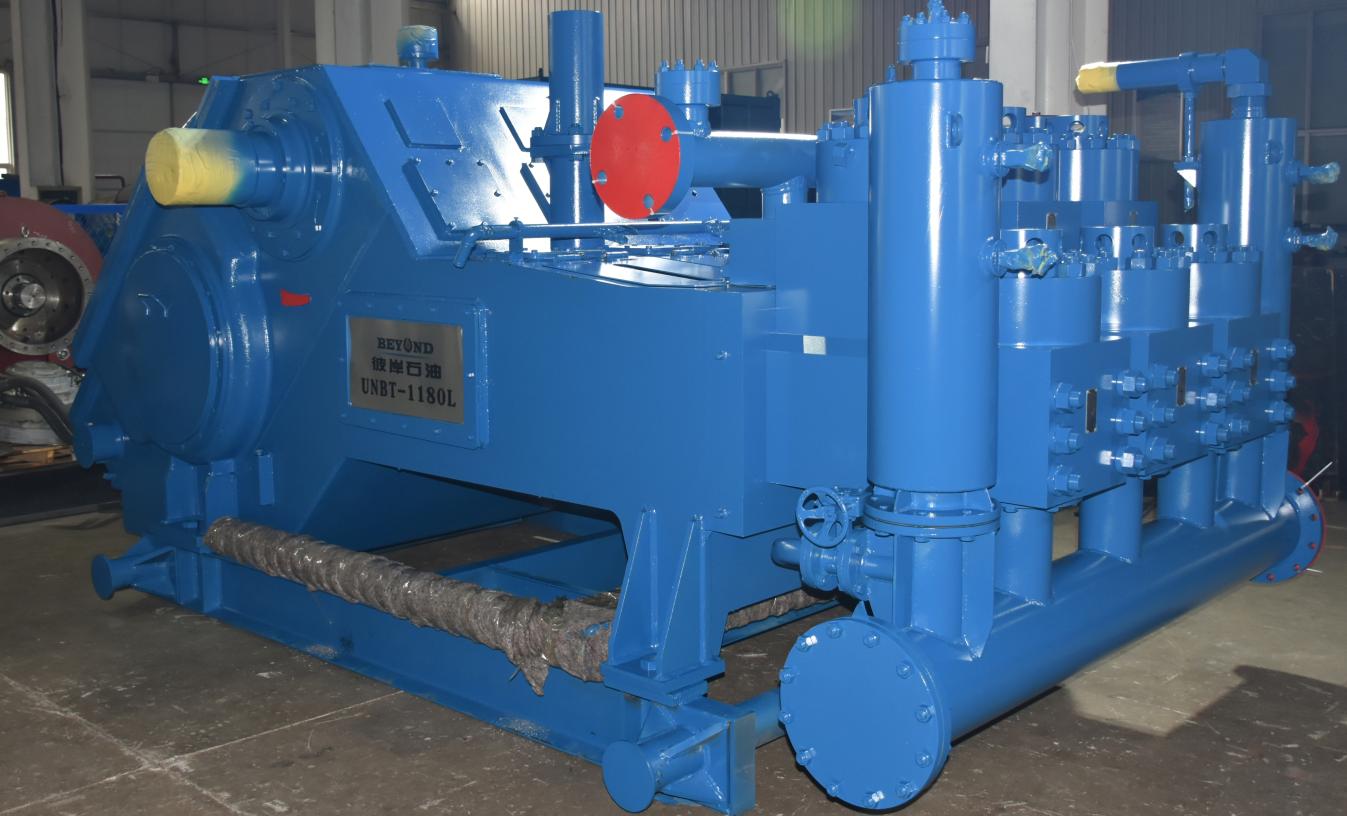

Two UNBT-1180L Pumps shipped to Russia

Beyond shipped 2 sets of UNBT-1180L pumps to Russia this week. It is the first time to manufacture a Russian standard pump in China.

The Pump technical characteristics

No

Parameter name

Value

1

Drilling pump type

Triplex, single-acting, UNBT-1180L

2

Drilling pump power, kW

1180

3

Maximum pressure developed by the pump, MPa

35

4

Maximum pump flow rate, l/s

51.4

5

Degree of feed control, %

100

6

Pump inlet pressure, MPa (min)

0.25

7

Maximum frequency of double piston strokes per minute

125

8

Input (transmission) shaft speed, rpm

556

9

Largest piston diameter, mm

190

10

Hydraulic valve boxes

L-shaped, forged

11

Pneumatic compensator of spherical type with separating diaphragm, degree of pressure irregularity at the pump outlet, % not more



5

12

Cylinder and piston group cooling supply system

Forced from electric pump unit

CM80-50-200/4-SD

13

Gearbox lubrication system

Forced from an autonomous pump unit80-1(BG-11-25A)

14

Relief valve

KP 50-400

15

Gearing type

Chevron

As of now, we have completed 10 sets of UNBT-1180L pumps and two more pumps are still in production. If you are interested in UNBTF series piston plunger pump, etc. Please feel free to contact US.

To choose BEYOND, you will get beyond your expectations and we will not let you down.
